DB2X20100L

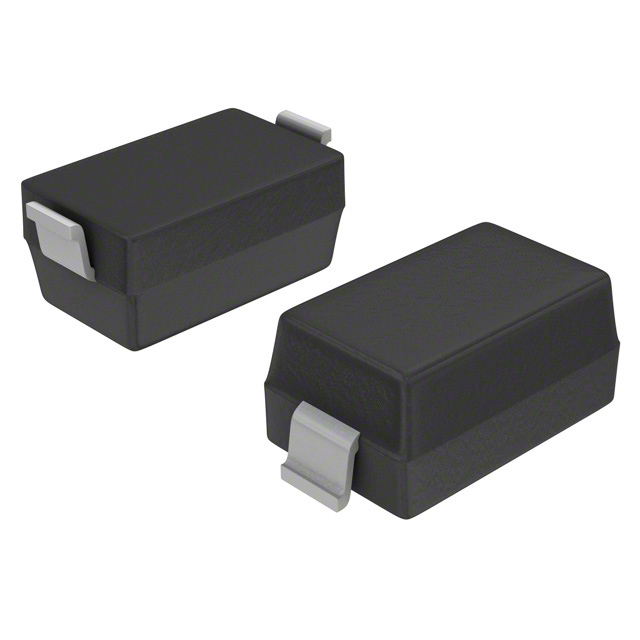

DIODE SCHOTTKY 20V 500MA SOD123Manufacturer: Panasonic Electronic Components
Categories: Single Diodes
Quality Control: Learn More
Panasonic Electronic Components DB2X20100L is a Schottky diode designed for efficient rectification and switching applications. Featuring a maximum DC reverse voltage of 20V and an average rectified current handling of 500mA, this component offers a low forward voltage of 550mV at 500mA. Its fast recovery time of 4.3ns and low leakage current of 10 µA at 10V make it suitable for high-frequency circuits. The diode's capacitance is rated at 12pF at 10V and 1MHz. Packaged in a compact SOD-123 surface-mount case and supplied on tape and reel, the DB2X20100L is utilized in power supply circuits, voltage clamping, and general-purpose rectification across various industrial and consumer electronics sectors. The maximum operating junction temperature is 125°C.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 13 week(s)Product Status: DiscontinuedPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOD-123 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 4.3 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 12pF @ 10V, 1MHz |
| Current - Average Rectified (Io) | 500mA |
| Supplier Device Package | SOD-123 |
| Operating Temperature - Junction | 125°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 500 mA |
| Current - Reverse Leakage @ Vr | 10 µA @ 10 V |
