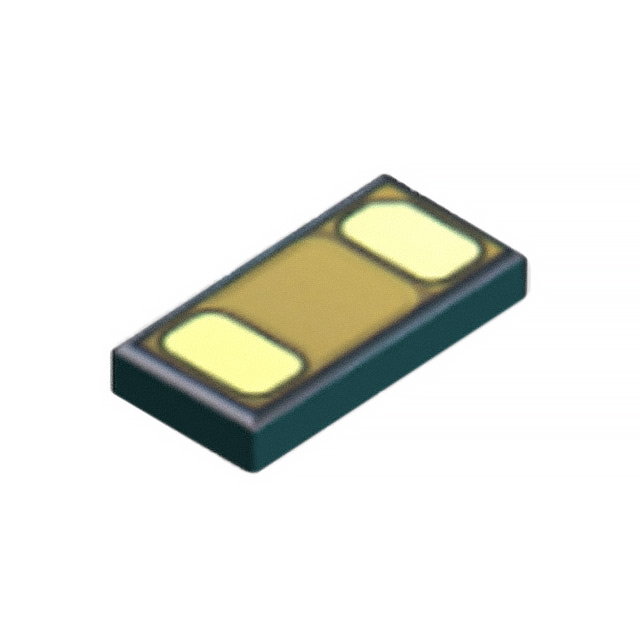

DB2L32400L1
DIODE SCHOTTKY 30V 500MA 0201Manufacturer: Panasonic Electronic Components
Categories: Single Diodes
Quality Control: Learn More
Diode 30 V 500mA Surface Mount 0201 (0603 Metric)
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 13 week(s)Product Status: DiscontinuedPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0201 (0603 Metric) |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 3.2 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 10pF @ 10V, 1MHz |
| Current - Average Rectified (Io) | 500mA |
| Supplier Device Package | 0201 (0603 Metric) |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 490 mV @ 500 mA |
| Current - Reverse Leakage @ Vr | 225 µA @ 30 V |
