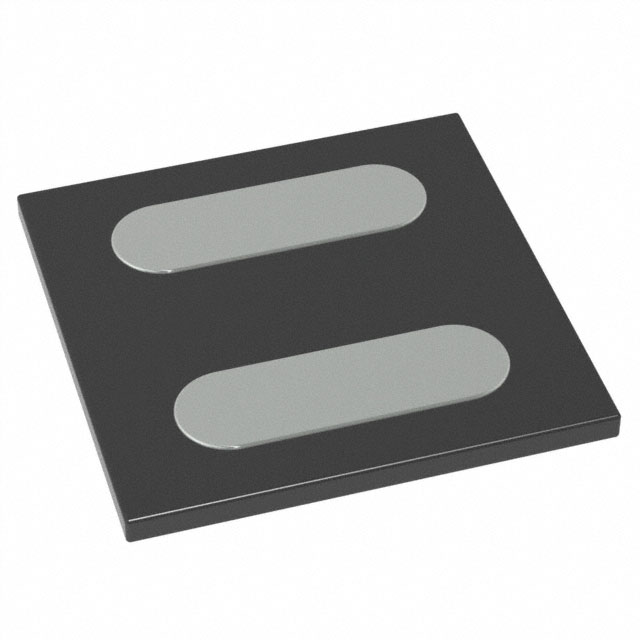

DB2F43100L1
DIODE SCHOTTKY 40V 5A CSPManufacturer: Panasonic Electronic Components
Categories: Single Diodes
Quality Control: Learn More
Panasonic Electronic Components DB2F43100L1 is a Schottky diode designed for high-efficiency rectification. This component features a 40V reverse voltage rating and a 5A forward current capability, with a maximum forward voltage drop of 600mV at 5A. Its low reverse leakage current is specified at 100 µA at 40V. The device operates with a junction temperature up to 150°C and has a reverse recovery time of 45 ns, classifying it as fast recovery. Supplied in a compact 0606 (1616 Metric) DCSP1616010-N1 package for surface mounting, it is delivered on tape and reel. Typical applications include power management circuits, high-frequency switching power supplies, and automotive electronics where efficient power conversion is critical.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 17 week(s)Product Status: DiscontinuedPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0606 (1616 Metric) |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 45 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 140pF @ 10V, 1MHz |
| Current - Average Rectified (Io) | 5A |
| Supplier Device Package | DCSP1616010-N1 |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 600 mV @ 5 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 40 V |
