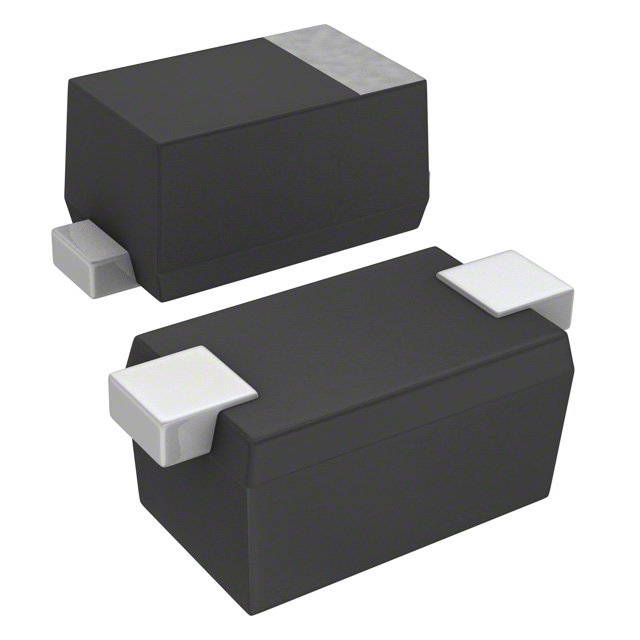

DB2141300L
DIODE SCHOT 40V 2A SMINI2-F4-B-BManufacturer: Panasonic Electronic Components
Categories: Single Diodes
Quality Control: Learn More
Diode 40 V 2A Surface Mount SMINI2-F4-B-B
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 11 week(s)Product Status: DiscontinuedPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 12 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 43pF @ 10V, 1MHz |
| Current - Average Rectified (Io) | 2A |
| Supplier Device Package | SMINI2-F4-B-B |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 530 mV @ 2 A |
| Current - Reverse Leakage @ Vr | 150 µA @ 40 V |
