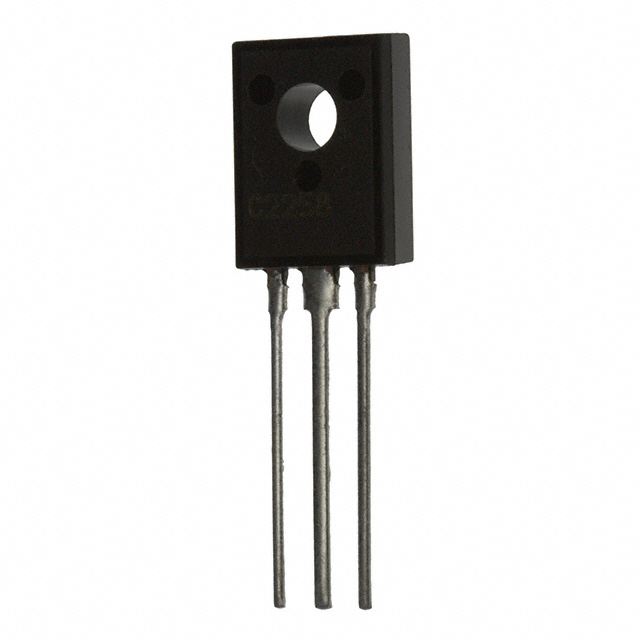

productimage

2SD24590SL

TRANS NPN 150V 1A MINIP3-F1

Manufacturer: Panasonic Electronic Components

Categories: Single Bipolar Transistors

Quality Control: Learn More

Panasonic Electronic Components 2SD24590SL is an NPN bipolar junction transistor. This surface mount device features a collector current rating of 1 A and a collector-emitter breakdown voltage of 150 V. With a transition frequency of 90 MHz and a maximum power dissipation of 1 W, it is suitable for applications requiring moderate power handling and signal amplification. The DC current gain (hFE) is specified at a minimum of 170 at 100 mA collector current and 2 V collector-emitter voltage. The Vce(sat) is a maximum of 300 mV at 25 mA base current and 500 mA collector current. The transistor is supplied in a MiniP3-F1 package, also known as TO-243AA, on tape and reel. This component finds use in power supply circuits, switching applications, and general-purpose amplification across various industrial electronics sectors.

Additional Information

Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)
Technical Details:
PackagingTape & Reel (TR)
Package / CaseTO-243AA
Mounting TypeSurface Mount
Transistor TypeNPN
Operating Temperature150°C (TJ)
Vce Saturation (Max) @ Ib, Ic300mV @ 25mA, 500mA
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce170 @ 100mA, 2V
Frequency - Transition90MHz
Supplier Device PackageMiniP3-F1
Current - Collector (Ic) (Max)1 A
Voltage - Collector Emitter Breakdown (Max)150 V
Power - Max1 W
