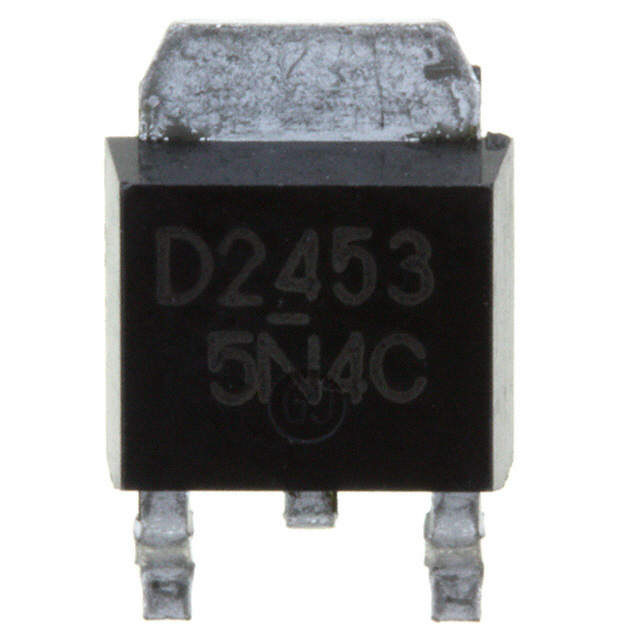

2SD245300L
TRANS NPN 60V 2A U-G2Manufacturer: Panasonic Electronic Components
Categories: Single Bipolar Transistors
Quality Control: Learn More
Panasonic Electronic Components NPN Bipolar Junction Transistor (BJT), part number 2SD245300L, is a surface-mount device designed for high-efficiency switching applications. This component features a 60V collector-emitter breakdown voltage (Vce) and a maximum continuous collector current (Ic) of 2A. With a power dissipation rating of 1W and a transition frequency (fT) of 50MHz, it is suitable for use in power management circuits within the automotive and industrial automation sectors. The transistor exhibits a minimum DC current gain (hFE) of 500 at 500mA collector current and 4V Vce, and a maximum Vce(sat) of 1V at 50mA base current and 2A collector current. It is supplied in a TO-252-3, DPAK (SC-63) package and is delivered on tape and reel. The operating junction temperature range is up to 150°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 50mA, 2A |
| Current - Collector Cutoff (Max) | 100µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 500 @ 500mA, 4V |
| Frequency - Transition | 50MHz |
| Supplier Device Package | U-G2 |
| Current - Collector (Ic) (Max) | 2 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Power - Max | 1 W |
