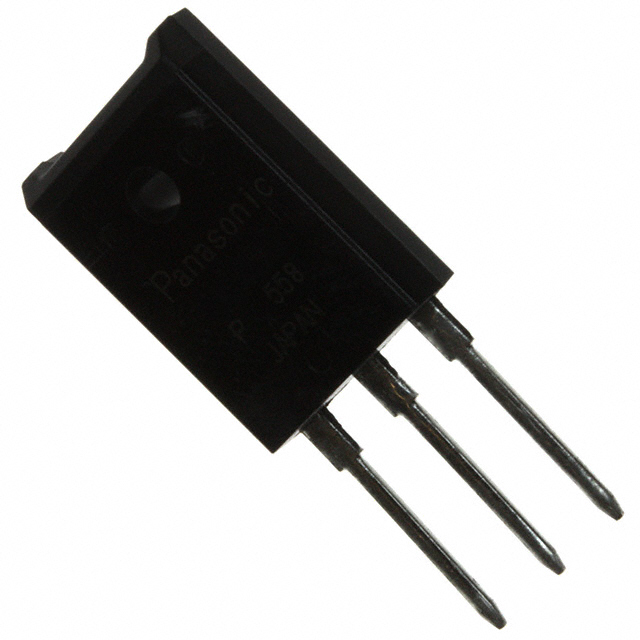

2SD14850P
TRANS NPN 100V 5A TOP-3FManufacturer: Panasonic Electronic Components
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor NPN 100 V 5 A 20MHz 3 W Through Hole TOP-3F-A1
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TOP-3F |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 2V @ 300mA, 3A |
| Current - Collector Cutoff (Max) | 50µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 1A, 5V |
| Frequency - Transition | 20MHz |
| Supplier Device Package | TOP-3F-A1 |
| Current - Collector (Ic) (Max) | 5 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V |
| Power - Max | 3 W |
