2SB09680RL
TRANS PNP 40V 1.5A U-G2Manufacturer: Panasonic Electronic Components
Categories: Single Bipolar Transistors
Quality Control: Learn More

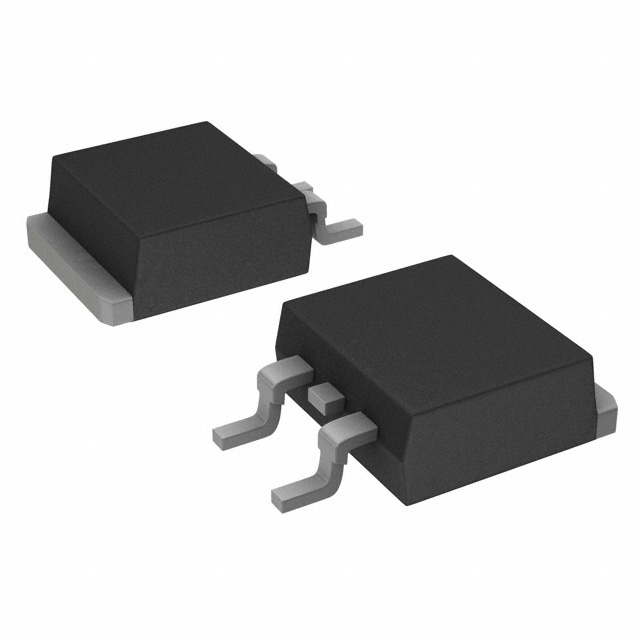

Panasonic Electronic Components PNP Bipolar Junction Transistor, part number 2SB09680RL. This device features a collector-emitter breakdown voltage of 40V and a continuous collector current (Ic) of 1.5A. The PNP transistor offers a minimum DC current gain (hFE) of 120 at 1A and 5V, with a transition frequency (fT) of 150MHz. It is supplied in a U-G2 package, equivalent to a TO-252-3, DPAK, and is designed for surface mounting. Maximum power dissipation is rated at 10W, and it can operate at junction temperatures up to 150°C. This component is commonly utilized in industrial automation and power management applications. It is provided in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Transistor Type | PNP |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 150mA, 1.5A |
| Current - Collector Cutoff (Max) | 100µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 1A, 5V |
| Frequency - Transition | 150MHz |
| Supplier Device Package | U-G2 |
| Current - Collector (Ic) (Max) | 1.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 40 V |
| Power - Max | 10 W |
