2SB0710AQL
TRANS PNP 50V 0.5A MINI3Manufacturer: Panasonic Electronic Components
Categories: Single Bipolar Transistors
Quality Control: Learn More

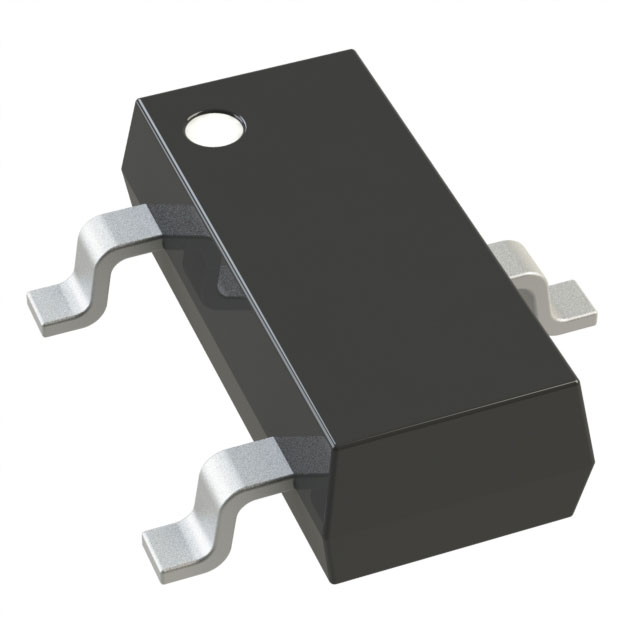

Panasonic Electronic Components PNP Bipolar Junction Transistor, part number 2SB0710AQL. This device features a 50V collector-emitter breakdown voltage and a continuous collector current capability of 500mA. The transition frequency is 200MHz, with a maximum power dissipation of 200mW. It offers a minimum DC current gain (hFE) of 85 at 150mA and 10V. The transistor type is PNP, and it operates at an ambient temperature up to 150°C. It is supplied in a Mini3-G1 package, also known as TO-236-3, SC-59, or SOT-23-3, suitable for surface mounting. The component is delivered on tape and reel. This device is commonly utilized in consumer electronics and industrial automation applications.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Transistor Type | PNP |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 30mA, 300mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 85 @ 150mA, 10V |
| Frequency - Transition | 200MHz |
| Supplier Device Package | Mini3-G1 |
| Current - Collector (Ic) (Max) | 500 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Power - Max | 200 mW |
