ENW-89835C1KF
RF TXRX MODULE BLUETOOTH SMDManufacturer: Panasonic Electronic Components
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More

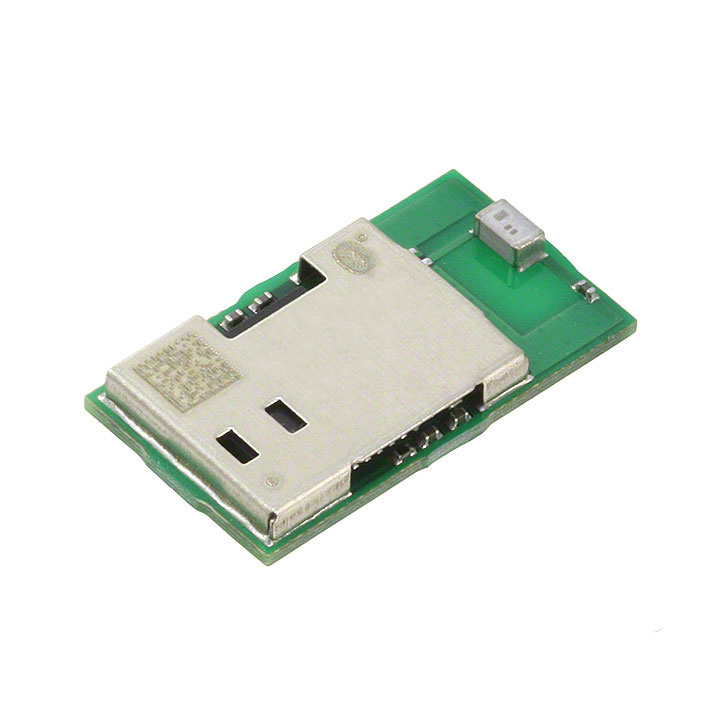

The Panasonic Electronic Components PAN1711 is a Bluetooth v4.0 transceiver module, identified by part number ENW89835C1KF. This surface mount device operates in the 2.4GHz band and features an antenna not included. Designed for efficient wireless communication, it supports data rates up to 10kbps and offers a transmit power of 0dBm with a receive sensitivity of -93dBm. Internally, the module utilizes the CC2541 IC, providing 256kB of Flash memory and 8kB of RAM. Key serial interfaces include SPI and UART, facilitating integration into various embedded systems. The operating temperature range is -40°C to 85°C, with a supply voltage requirement between 2V and 3.6V. The ENW89835C1KF is supplied in Tape & Reel packaging. This component finds application in industrial automation, medical devices, and consumer electronics.
Additional Information
Series: PAN1711RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Module |
| Sensitivity | -93dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 256kB Flash, 8kB RAM |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2V ~ 3.6V |
| Power - Output | 0dBm |
| Data Rate | 10kbps |
| Protocol | Bluetooth v4.0 |
| Current - Receiving | - |
| Current - Transmitting | 14.3mA |
| Antenna Type | Antenna Not Included |
| Utilized IC / Part | CC2541 |
| Modulation | - |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | SPI, UART |
| Programmable | Not Verified |
Request a Quote
