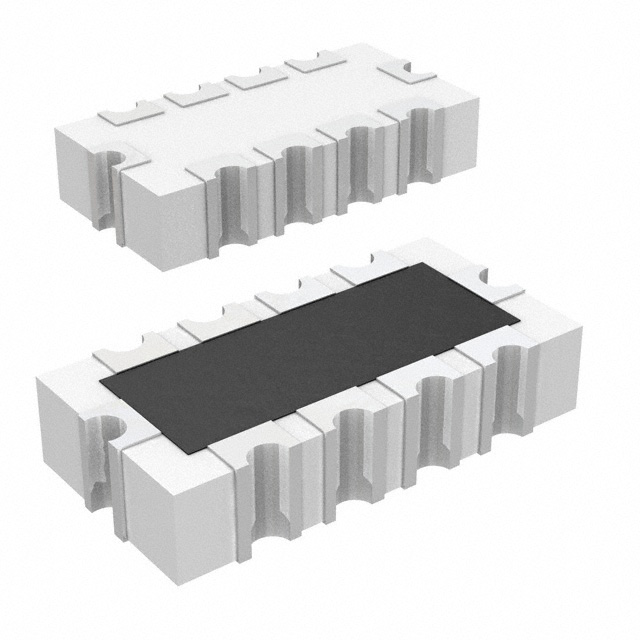

EXB-D10C103J
RES ARRAY 8 RES 10K OHM 1206Manufacturer: Panasonic Electronic Components
Categories: Resistor Networks, Arrays
Quality Control: Learn More
10k Ohm ±5% 50mW Power Per Element Bussed 8 Resistor Network/Array ±200ppm/°C 1206 (3216 Metric), Concave, Long Side Terminals
Additional Information
Series: EXBRoHS Status: ROHS3 CompliantManufacturer Lead Time: 54 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 10k |
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Power Per Element | 50mW |
| Circuit Type | Bussed |
| Number of Pins | 10 |
| Package / Case | 1206 (3216 Metric), Concave, Long Side Terminals |
| Temperature Coefficient | ±200ppm/°C |
| Size / Dimension | 0.126"" L x 0.063"" W (3.20mm x 1.60mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Applications | - |
| Supplier Device Package | 1206 |
| Height - Seated (Max) | 0.026"" (0.65mm) |
| Grade | - |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Resistors | 8 |
| Qualification | - |
Request a Quote
Clients Also Buy
EXB-2HV470JV
RES ARRAY 8 RES 47 OHM 1506

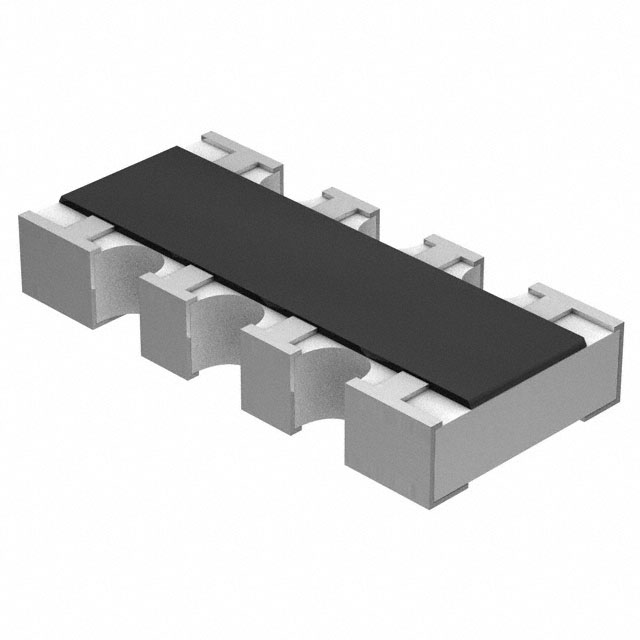

EXB-38V103JV
