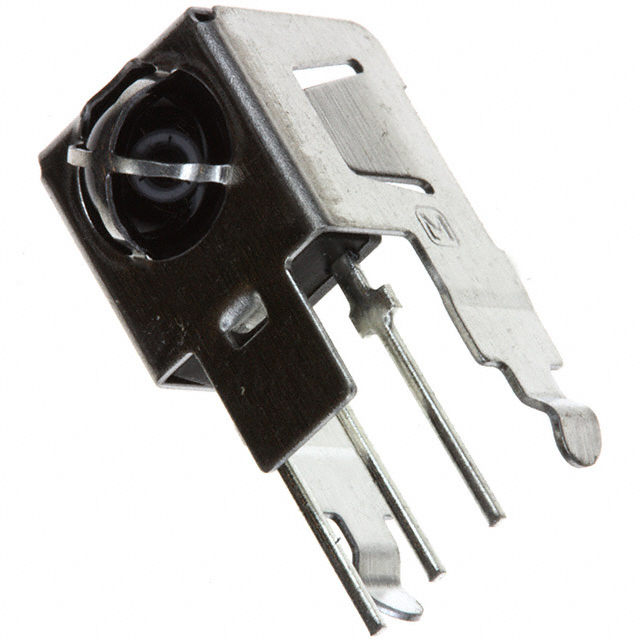

PNA4612M00YA
SENSOR REMOTE REC 38.0KHZManufacturer: Panasonic Electronic Components
Categories: Remote Receiver
Quality Control: Learn More
Panasonic Electronic Components PNA4612M00YA is a through-hole mounted remote receiver sensor operating at a 38.0kHz bandpass filter center frequency. This component features a side-view orientation and requires a supply voltage ranging from 4.7V to 5.3V, with a typical current consumption of 2.4mA. Its operating temperature range is -20°C to 75°C. This receiver sensor is suitable for applications in consumer electronics, home automation, and industrial control systems where remote signal reception is critical. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Mounting Type | Through Hole |
| Orientation | Side View |
| Operating Temperature | -20°C ~ 75°C |
| B.P.F. Center Frequency | 38.0kHz |
| Current - Supply | 2.4 mA |
| Voltage - Supply | 4.7 V ~ 5.3 V |
Request a Quote
