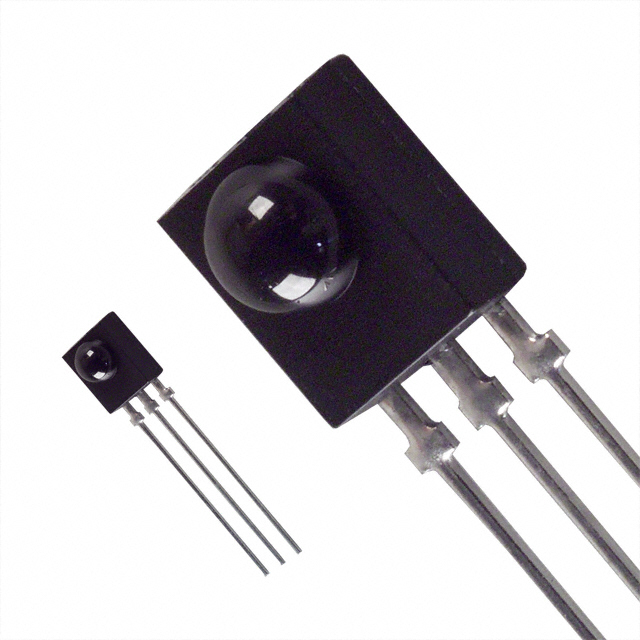

PNA4602M
SENSOR REMOTE REC 38.0KHZ 10MManufacturer: Panasonic Electronic Components
Categories: Remote Receiver
Quality Control: Learn More
Panasonic Electronic Components PNA4602M is a remote receiver sensor designed for efficient infrared signal reception. This through-hole component features a narrow bandpass filter with a center frequency of 38.0kHz, ensuring selective detection of modulated infrared signals. With a typical supply current of 2.4 mA and an operating voltage range of 4.7 V to 5.3 V, it offers excellent power efficiency. The side-view orientation and a sensing distance of up to 10 meters make it suitable for various consumer electronics and industrial control applications where reliable remote operation is critical. Packaged in bulk, the PNA4602M is engineered for robust performance in demanding environments.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Sensing Distance | 10M |
| Mounting Type | Through Hole |
| Orientation | Side View |
| Operating Temperature | -20°C ~ 75°C |
| B.P.F. Center Frequency | 38.0kHz |
| Current - Supply | 2.4 mA |
| Voltage - Supply | 4.7 V ~ 5.3 V |
Request a Quote
Clients Also Buy

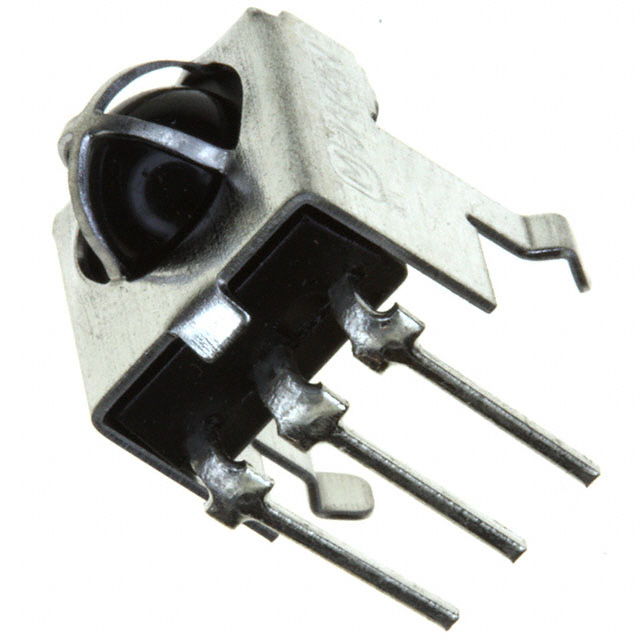

PNA4611M00XD
SENSOR REMOTE REC 36.7KHZ 16M
PNA4612M00YA
SENSOR REMOTE REC 38.0KHZ

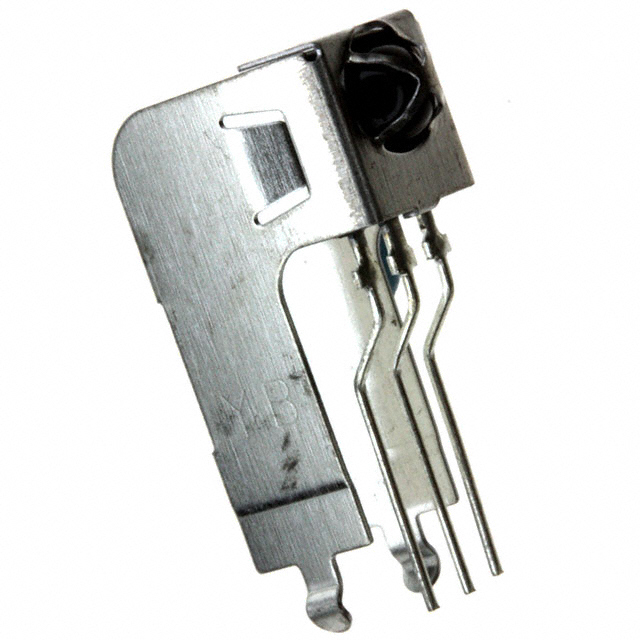

PNA4614M00YB
