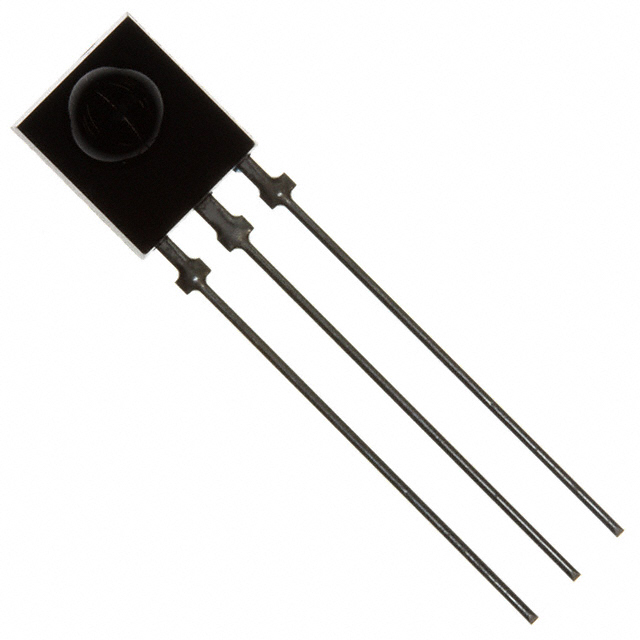

PNA4601M
SENSOR REMOTE REC 36.7KHZ 10MManufacturer: Panasonic Electronic Components
Categories: Remote Receiver
Quality Control: Learn More
The Panasonic Electronic Components PNA4601M is a remote receiver sensor operating at a 36.7kHz bandpass filter center frequency. This through-hole component offers a nominal sensing distance of 10 meters and is designed for side-view orientation. It requires a supply voltage range of 4.8V to 5.2V and draws a typical supply current of 3mA. Operating within an ambient temperature range of -20°C to 75°C, the PNA4601M is suitable for applications in consumer electronics and industrial control systems requiring infrared signal reception. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Sensing Distance | 10M |
| Mounting Type | Through Hole |
| Orientation | Side View |
| Operating Temperature | -20°C ~ 75°C |
| B.P.F. Center Frequency | 36.7kHz |
| Current - Supply | 3 mA |
| Voltage - Supply | 4.8 V ~ 5.2 V |
