ADP5251
SENSOR 29.01PSIG 0.12"" 4.5VManufacturer: Panasonic Electronic Components
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Panasonic Electronic Components PS-A series pressure sensor, part number ADP5251, offers a precise 29.01 PSI (200kPa) vented gauge measurement. This surface-mount device features a 0 V to 4.5 V amplified Wheatstone bridge output, with an accuracy of ±1.5%. Designed for board mounting, the ADP5251 incorporates temperature compensation and operates from a 5V supply. The sensor has a 0.12" (3mm) barbless male tube port and a gull-wing termination style. Its operating temperature range is -10°C to 60°C, with a maximum pressure rating of 58.02 PSI (400kPa). This component is utilized in applications such as industrial automation and medical equipment.
Additional Information
Series: PS-ARoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: Last Time BuyPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Tray |
| Package / Case | 6-SMD Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Surface Mount |
| Output | 0 V ~ 4.5 V |
| Operating Pressure | 29.01PSI (200kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±1.5% |
| Operating Temperature | -10°C ~ 60°C |
| Termination Style | Gull Wing |
| Voltage - Supply | 5V |
| Port Size | Male - 0.12"" (3mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 58.02PSI (400kPa) |
Request a Quote
Clients Also Buy

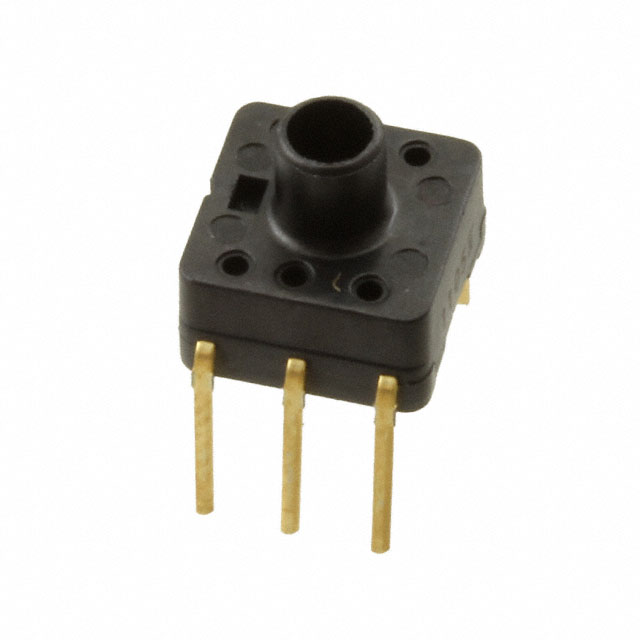

ADP5100
