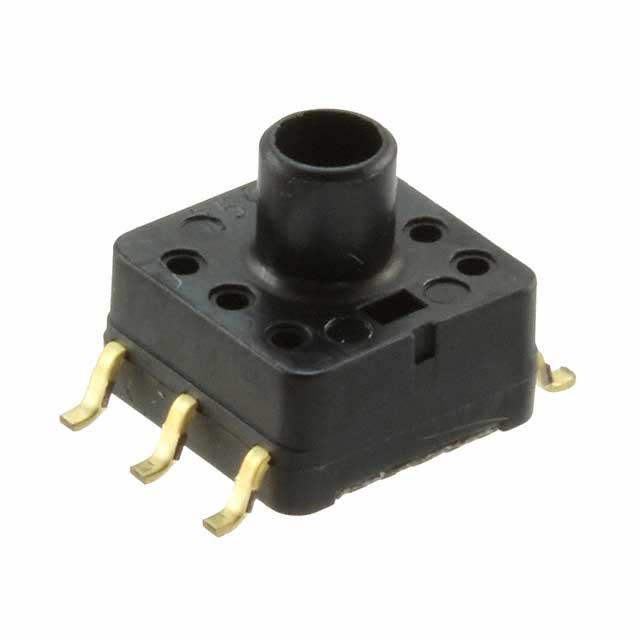

ADP5210
SENSOR 14.5PSIG 0.12"" 4.5VManufacturer: Panasonic Electronic Components
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Panasonic Electronic Components PS-A series ADP5210 is a vented gauge pressure sensor, offering a -14.5 PSI (-100kPa) operating pressure range with a maximum pressure rating of -29.01 PSI (-200kPa). This surface-mount component features a 0 V to 4.5 V amplified Wheatstone bridge output, calibrated for ±1.5% accuracy. It includes temperature compensation for stable performance across its -10°C to 60°C operating temperature range. The sensor utilizes a 0.12" (3mm) male tube port with a barbless style and gull wing termination. Applications for this device include board mount systems within industrial and automotive sectors.
Additional Information
Series: PS-ARoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: Last Time BuyPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Tray |
| Package / Case | 6-SMD Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Surface Mount |
| Output | 0 V ~ 4.5 V |
| Operating Pressure | -14.5PSI (-100kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±1.5% |
| Operating Temperature | -10°C ~ 60°C |
| Termination Style | Gull Wing |
| Voltage - Supply | 5V |
| Port Size | Male - 0.12"" (3mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | -29.01PSI (-200kPa) |
