ADP51B63
SENSOR 0.87PSIG 0.22"" 4.5VManufacturer: Panasonic Electronic Components
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

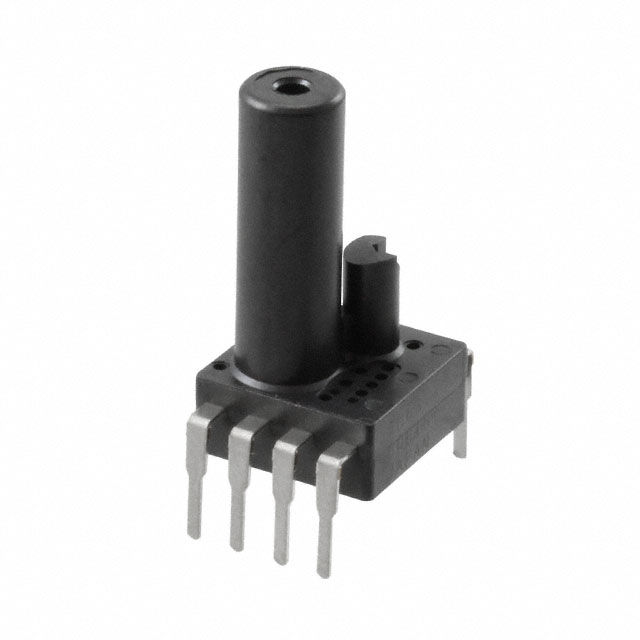

Panasonic Electronic Components PS-A series pressure sensor, part number ADP51B63. This vented gauge sensor measures operating pressure up to 0.87 PSI (6kPa) with a maximum pressure rating of 1.74 PSI (12kPa). It features an amplified analog voltage output and is temperature compensated, offering ±2.5% accuracy across its -5°C to 50°C operating temperature range. The sensor is housed in an 8-DIP module for through-hole mounting and includes a 0.22" (5.45mm) male tube port. Designed for board mount applications, it is commonly utilized in industrial and medical equipment. The supply voltage range is 3.5 V to 4.5 V, with a reported 5V supply voltage.
Additional Information
Series: PS-ARoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: Last Time BuyPackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Box |
| Package / Case | 8-DIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 3.5 V ~ 4.5 V |
| Operating Pressure | 0.87PSI (6kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±2.5% |
| Operating Temperature | -5°C ~ 50°C |
| Termination Style | PC Pin |
| Voltage - Supply | 5V |
| Port Size | Male - 0.22"" (5.45mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 1.74PSI (12kPa) |
