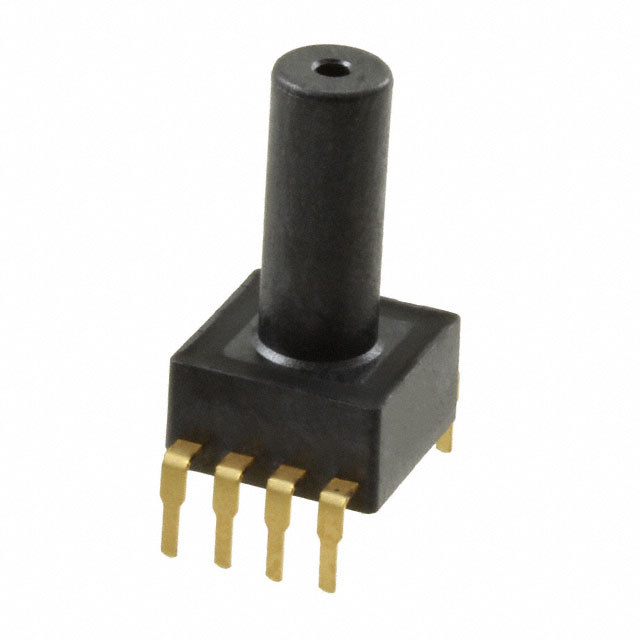

ADP51B62
SENSOR 0.87PSIG 0.22"" 5VManufacturer: Panasonic Electronic Components
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Panasonic Electronic Components PS-A series pressure sensor, part number ADP51B62. This vented gauge sensor measures 0.87 PSI (6 kPa) with a maximum pressure rating of 1.74 PSI (12 kPa). It features an amplified, temperature-compensated analog voltage output ranging from 0 V to 5 V, supplied by a 5V source. The sensor is housed in an 8-DIP module with a through-hole mounting type and a male, barbless port for a 0.22" (5.45mm) tube. Accuracy is specified at ±1.25%. Applications include board mount designs within industries such as industrial automation and medical instrumentation. Operating temperature range is -5°C to 50°C.
Additional Information
Series: PS-ARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0 V ~ 5 V |
| Operating Pressure | 0.87PSI (6kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±1.25% |
| Operating Temperature | -5°C ~ 50°C |
| Termination Style | PC Pin |
| Voltage - Supply | 5V |
| Port Size | Male - 0.22"" (5.45mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 1.74PSI (12kPa) |
