ADP51B61
SENSOR 0.87PSIG 0.12"" 5VManufacturer: Panasonic Electronic Components
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

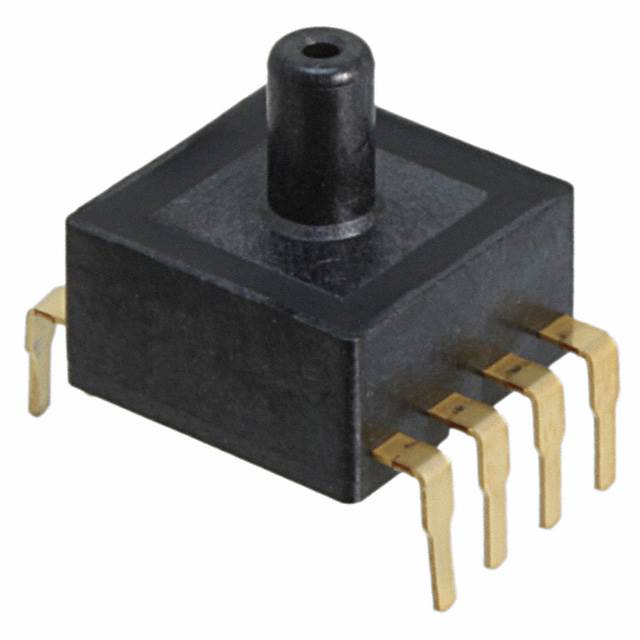

Panasonic Electronic Components PS-A series ADP51B61 is a vented gauge pressure sensor. This component offers an analog voltage output ranging from 0V to 5V, with an operating pressure range of 0.87 PSI (6 kPa). The sensor features a 0.12-inch (3mm) male tube port and a through-hole mounting type within an 8-DIP module package. Its accuracy is rated at ±1.25%, and it is temperature compensated, providing an amplified output. The device operates with a 5V supply voltage and is designed for board mounting applications. This sensor is suitable for use in industrial automation and control systems.
Additional Information
Series: PS-ARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0 V ~ 5 V |
| Operating Pressure | 0.87PSI (6kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±1.25% |
| Operating Temperature | -5°C ~ 50°C |
| Termination Style | PC Pin |
| Voltage - Supply | 5V |
| Port Size | Male - 0.12"" (3mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 1.74PSI (12kPa) |
