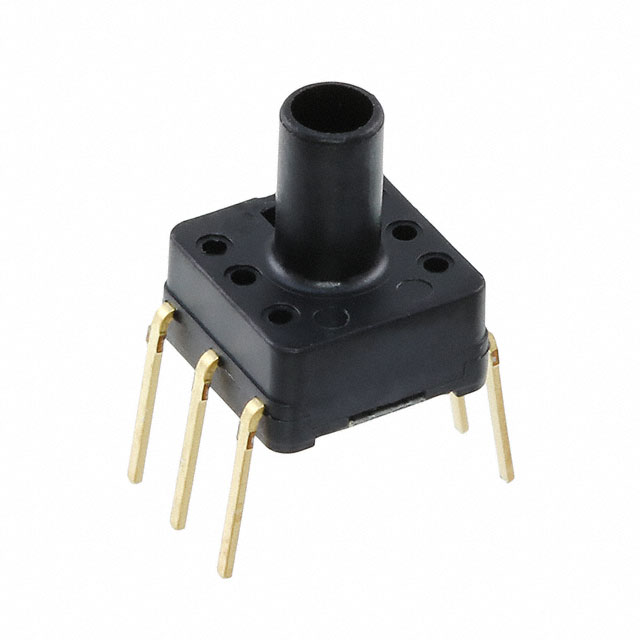

ADP5161

SENSOR 72.52PSIG 0.12"" 4.5V

Manufacturer: Panasonic Electronic Components

Categories: Pressure Sensors, Transducers

Quality Control: Learn More

Panasonic Electronic Components PS-A series ADP5161 is a high-precision vented gauge pressure sensor. This component measures operating pressures up to 72.52 PSI (500 kPa) with a maximum pressure rating of 145.04 PSI (1000 kPa). It provides an amplified analog voltage output ranging from 0 V to 4.5 V, with an accuracy of ±1.25%. The sensor features temperature compensation for stable performance across its operating temperature range of -10°C to 60°C. Designed for board mounting, the ADP5161 utilizes a 6-DIP module package with PC pin termination and a through-hole mounting style. The 0.12" (3mm) male tube port is barbless. This device is commonly found in industrial automation and medical equipment applications.

Additional Information

Series: PS-ARoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: Last Time BuyPackaging: BoxDatasheet:
Technical Details:
FeaturesAmplified Output, Temperature Compensated
PackagingBox
Package / Case6-DIP Module
Output TypeAnalog Voltage
Mounting TypeThrough Hole
Output0 V ~ 4.5 V
Operating Pressure72.52PSI (500kPa)
Pressure TypeVented Gauge
Accuracy±1.25%
Operating Temperature-10°C ~ 60°C
Termination StylePC Pin
Voltage - Supply5V
Port SizeMale - 0.12"" (3mm) Tube
ApplicationsBoard Mount
Supplier Device Package-
Port StyleBarbless
Maximum Pressure145.04PSI (1000kPa)
