ADP5151
SENSOR 29.01PSIG 0.12"" 4.5VManufacturer: Panasonic Electronic Components
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

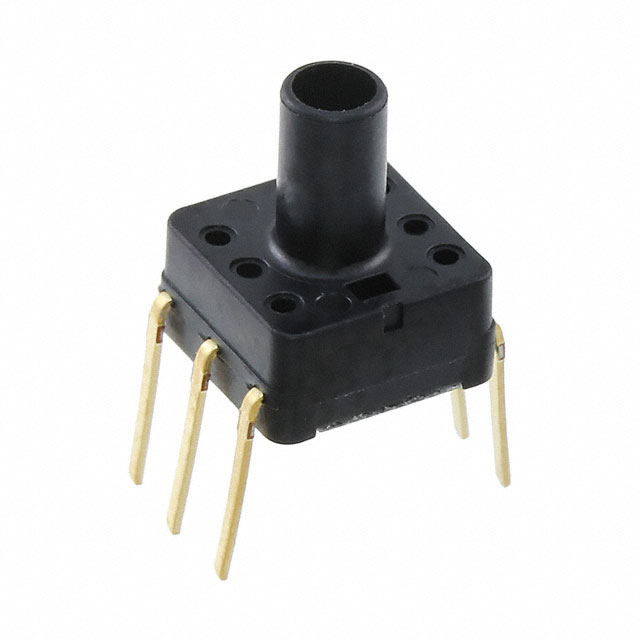

Panasonic Electronic Components PS-A series ADP5151 is a vented gauge pressure sensor with a 29.01 PSI (200kPa) operating pressure range. This board-mount component features an amplified, temperature-compensated analog voltage output of 0 V to 4.5 V, driven by a 5V supply. The sensor utilizes a 6-DIP Module package with through-hole mounting and a 0.12" (3mm) barbless tube port. Its accuracy is rated at ±1.25%. The ADP5151 is suitable for applications requiring precise pressure monitoring in industrial and medical equipment.
Additional Information
Series: PS-ARoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: Last Time BuyPackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Box |
| Package / Case | 6-DIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0 V ~ 4.5 V |
| Operating Pressure | 29.01PSI (200kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±1.25% |
| Operating Temperature | -10°C ~ 60°C |
| Termination Style | PC Pin |
| Voltage - Supply | 5V |
| Port Size | Male - 0.12"" (3mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 58.02PSI (400kPa) |
