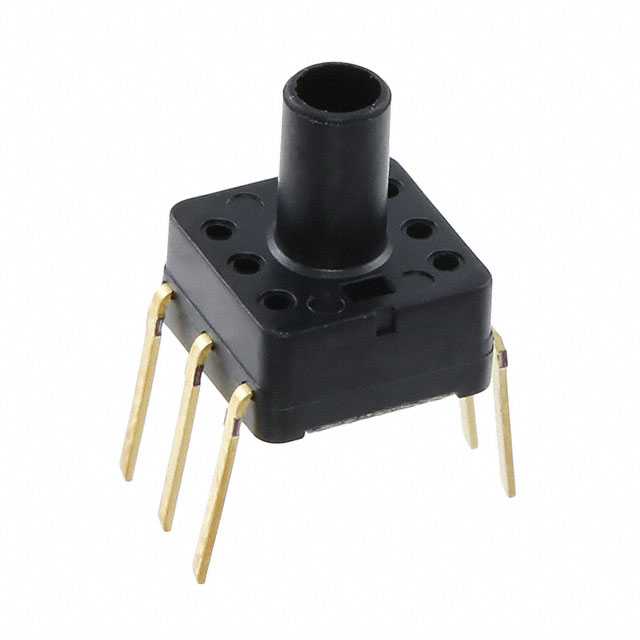

ADP5101

SENSOR 14.5PSIG 0.12"" 4.5V

Manufacturer: Panasonic Electronic Components

Categories: Pressure Sensors, Transducers

Quality Control: Learn More

Panasonic Electronic Components PS-A Series ADP5101 is a vented gauge pressure sensor with a ±14.5 PSI (±100kPa) operating pressure range. This board mount component features an analog voltage output from 0V to 4.5V, with an accuracy of ±1.25%. It is temperature compensated and offers an amplified output. The sensor utilizes a 0.12" (3mm) male tube port and is housed in a 6-DIP module package suitable for through-hole mounting. Designed for a 5V supply voltage, the ADP5101 operates within a temperature range of -10°C to 60°C. Applications include industrial automation and medical equipment.

Additional Information

Series: PS-ARoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: Last Time BuyPackaging: BulkDatasheet:
Technical Details:
FeaturesAmplified Output, Temperature Compensated
PackagingBulk
Package / Case6-DIP Module
Output TypeAnalog Voltage
Mounting TypeThrough Hole
Output0 V ~ 4.5 V
Operating Pressure±14.5PSI (±100kPa)
Pressure TypeVented Gauge
Accuracy±1.25%
Operating Temperature-10°C ~ 60°C
Termination StylePC Pin
Voltage - Supply5V
Port SizeMale - 0.12"" (3mm) Tube
ApplicationsBoard Mount
Supplier Device Package-
Port StyleBarbless
Maximum Pressure±29.01PSI (±200kPa)
