ADP4933
SENSOR 142.24PSIG 0.1"" .065VManufacturer: Panasonic Electronic Components
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

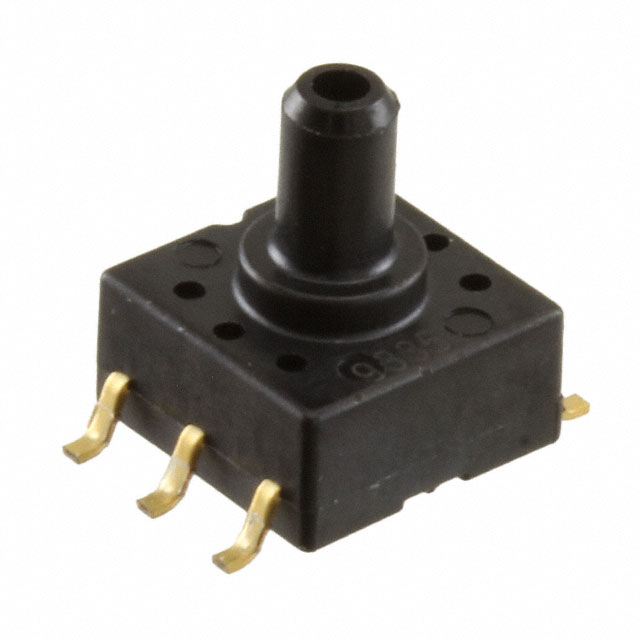

Panasonic Electronic Components PS series pressure sensor, part number ADP4933. This vented gauge sensor measures operating pressure up to 142.24PSI (980.7kPa) with a maximum pressure rating of 213.36PSI (1471.05kPa). It features a 0.1" (2.5mm) male tube port and a Wheatstone bridge output ranging from 0 mV to 65 mV. The sensor offers ±1% accuracy and is temperature compensated, operating within a -20°C to 100°C range. Designed for surface mount applications, it utilizes a 6-SMD module package with gull wing termination. This component is suitable for board mount applications in industries such as industrial automation and medical equipment.
Additional Information
Series: PSRoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: Last Time BuyPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 6-SMD Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Surface Mount |
| Output | 0 mV ~ 65 mV |
| Operating Pressure | 142.24PSI (980.7kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±1% |
| Operating Temperature | -20°C ~ 100°C |
| Termination Style | Gull Wing |
| Voltage - Supply | - |
| Port Size | Male - 0.1"" (2.5mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 213.36PSI (1471.05kPa) |
