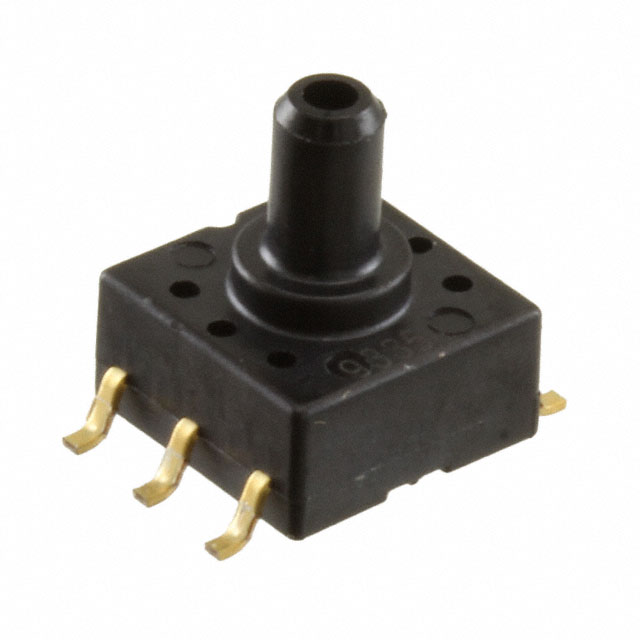

ADP4932
SENSOR 14.23PSIG 0.1"" .065VManufacturer: Panasonic Electronic Components
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 14.23PSI (98.1kPa) Vented Gauge Male - 0.1"" (2.5mm) Tube 0 mV ~ 65 mV 6-SMD Module
Additional Information
Series: PSRoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 6-SMD Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Surface Mount |
| Output | 0 mV ~ 65 mV |
| Operating Pressure | 14.23PSI (98.1kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±1% |
| Operating Temperature | -20°C ~ 100°C |
| Termination Style | Gull Wing |
| Voltage - Supply | - |
| Port Size | Male - 0.1"" (2.5mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 28.46PSI (196.22kPa) |
