ADP42810
SENSOR 120.9PSIG 0.1"" 0.1VManufacturer: Panasonic Electronic Components
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

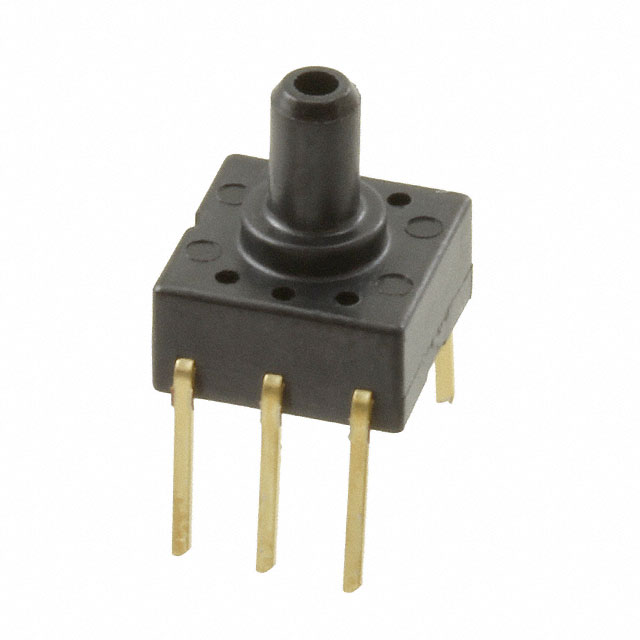

Panasonic Electronic Components PS Series ADP42810 is a vented gauge pressure sensor with an operating pressure range of 120.9 PSI (833.6 kPa). This component features a 0.1" (2.5mm) male tube port and outputs a Wheatstone bridge signal ranging from 0 mV to 100 mV. The device offers ±0.6% accuracy and is temperature compensated, operating within a -20°C to 100°C temperature range. Its through-hole mounting type and 6-DIP module package are suitable for board mount applications. The maximum pressure rating for this sensor is 181.36 PSI (1250.4 kPa). This component is commonly utilized in industrial automation and medical equipment.
Additional Information
Series: PSRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Box |
| Package / Case | 6-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 100 mV |
| Operating Pressure | 120.9PSI (833.6kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.6% |
| Operating Temperature | -20°C ~ 100°C |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Port Size | Male - 0.1"" (2.5mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 181.36PSI (1250.4kPa) |
