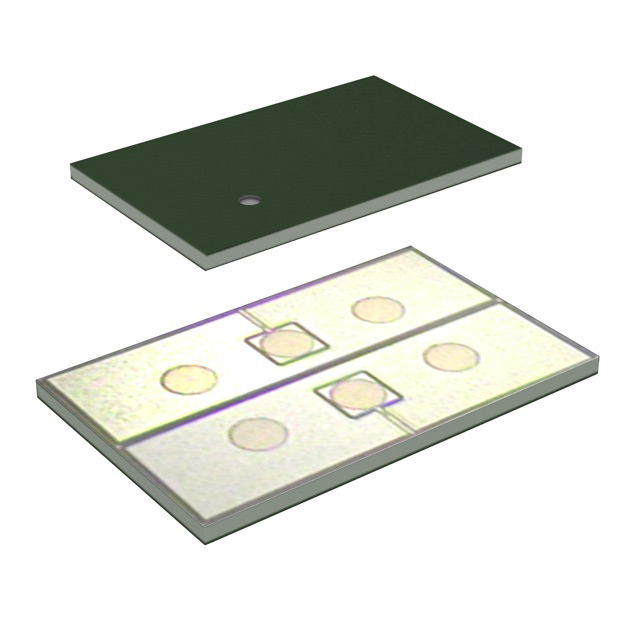

FC6B22160L1
IC PWR DRIVER N-CHANNEL 1:1 6SMDManufacturer: Panasonic Electronic Components
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Panasonic Electronic Components FC6B22160L1 is a single-channel N-channel power switch/driver with a 1:1 input-to-output ratio. This component is designed for general-purpose applications and offers a maximum continuous output current of 8A. Featuring a low Rds(on) of 4.7mOhm typical, it ensures efficient power delivery. The device operates with a load voltage of up to 20V and is packaged in a compact 6-SMD, No Lead configuration for surface mounting. It utilizes an ON/OFF interface for control. This power driver is suitable for applications within the automotive and industrial sectors.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, No Lead |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | - |
| Output Configuration | Low Side |
| Rds On (Typ) | 4.7mOhm |
| Input Type | - |
| Voltage - Load | 20V (Max) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 8A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 6-SMD |
| Fault Protection | - |
Request a Quote
Clients Also Buy

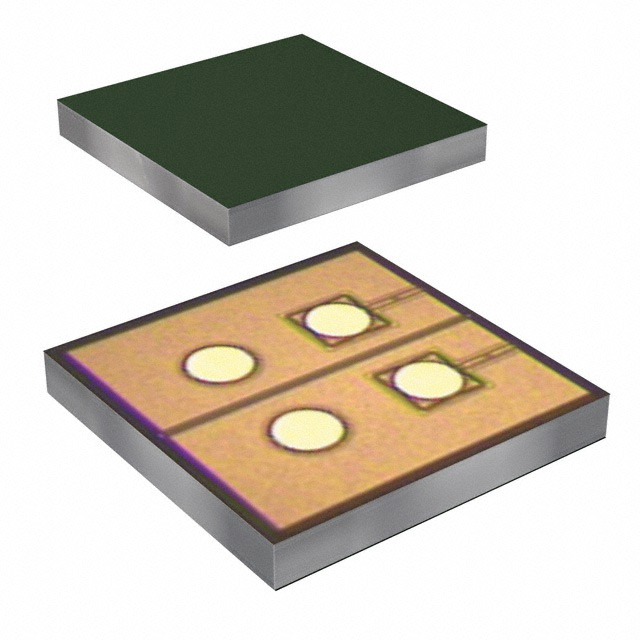

FC4B22180L1
IC PWR DRIVER N-CHANNEL 1:1 4SMD

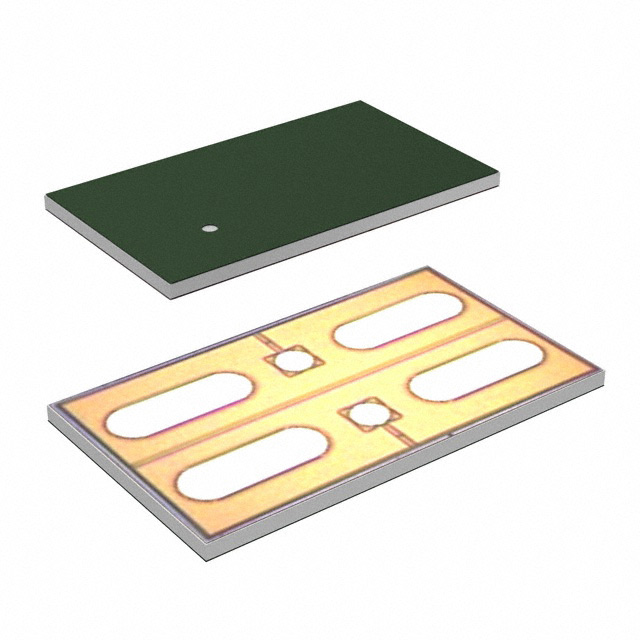

FCAB21350L1
IC PWR DRIVER N-CHANNEL 1:1 6SMD

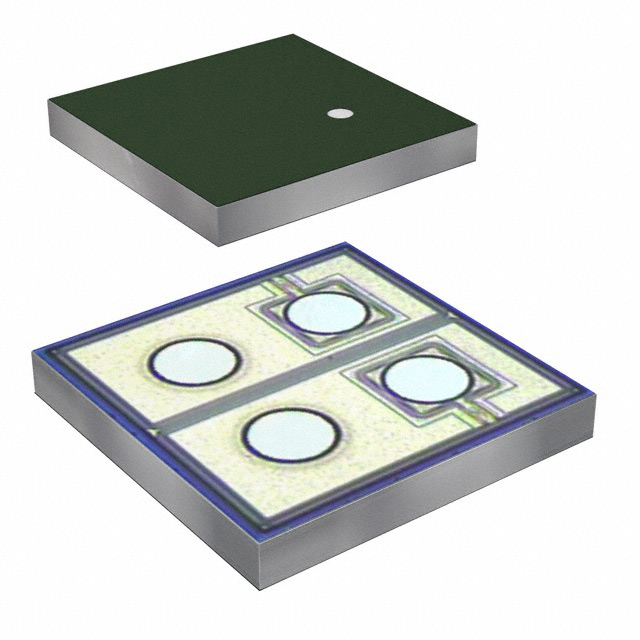

FC4B21300L1
