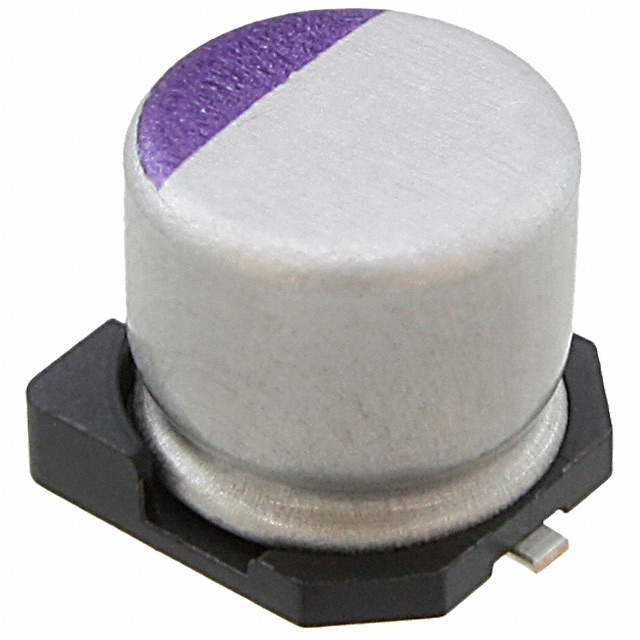

35SVPF22M
CAP ALUM POLY 22UF 20% 35V SMDManufacturer: Panasonic Electronic Components
Categories: Polymer Capacitors
Quality Control: Learn More
22 µF 35 V Aluminum - Polymer Capacitors Radial, Can - SMD 35mOhm 5000 Hrs @ 105°C
Additional Information
Series: OS-CON™, SVPFRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.248"" Dia (6.30mm) |
| Mounting Type | Surface Mount |
| Type | Polymer |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 35mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Surface Mount Land Size | 0.260"" L x 0.260"" W (6.60mm x 6.60mm) |
| Height - Seated (Max) | 0.236"" (6.00mm) |
| Capacitance | 22 µF |
| Voltage - Rated | 35 V |
| Ripple Current @ Low Frequency | 130 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.6 A @ 100 kHz |
