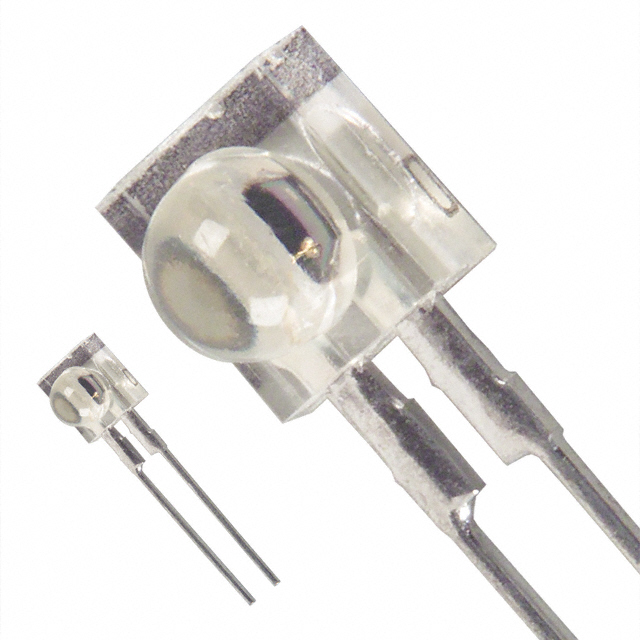

PNZ150
SENSOR PHOTO 800NM SIDE VIEW RADManufacturer: Panasonic Electronic Components
Categories: Phototransistors
Quality Control: Learn More
Panasonic Electronic Components PNZ150 is an 800nm side-view phototransistor designed for through-hole mounting. This component offers a collector current (Ic) of up to 20 mA with a low dark current (Id) of 1 µA maximum. It features a 70° viewing angle and a radial package suitable for various optical sensing applications. The maximum collector emitter breakdown voltage is 20 V, and the maximum power dissipation is 100 mW. This phototransistor is commonly utilized in industrial automation, consumer electronics, and automotive systems where precise light detection is required.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | - |
| Package / Case | Radial |
| Wavelength | 800nm |
| Mounting Type | Through Hole |
| Orientation | Side View |
| Operating Temperature | - |
| Viewing Angle | 70° |
| Current - Dark (Id) (Max) | 1 µA |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 20 V |
| Power - Max | 100 mW |
