PNZ121S0R
SENSOR PHOTO 800NM TOP VIEW T1Manufacturer: Panasonic Electronic Components
Categories: Phototransistors
Quality Control: Learn More

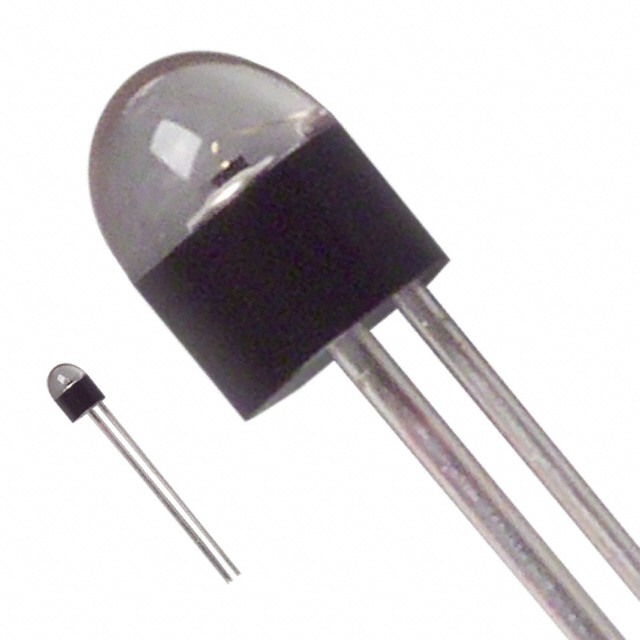

Panasonic Electronic Components PNZ121S0R is an 800nm top-view phototransistor housed in a T-1 package. This component features a maximum collector current (Ic) of 20 mA and a low dark current (Id) of 100 nA. Designed for through-hole mounting, it operates with a maximum collector emitter breakdown voltage of 20 V and a maximum power dissipation of 50 mW. The viewing angle is 60 degrees. This phototransistor is suitable for applications in industrial automation, optical sensing, and consumer electronics.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | - |
| Package / Case | T-1 |
| Wavelength | 800nm |
| Mounting Type | Through Hole |
| Orientation | Top View |
| Operating Temperature | - |
| Viewing Angle | 60° |
| Current - Dark (Id) (Max) | 100 nA |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 20 V |
| Power - Max | 50 mW |
