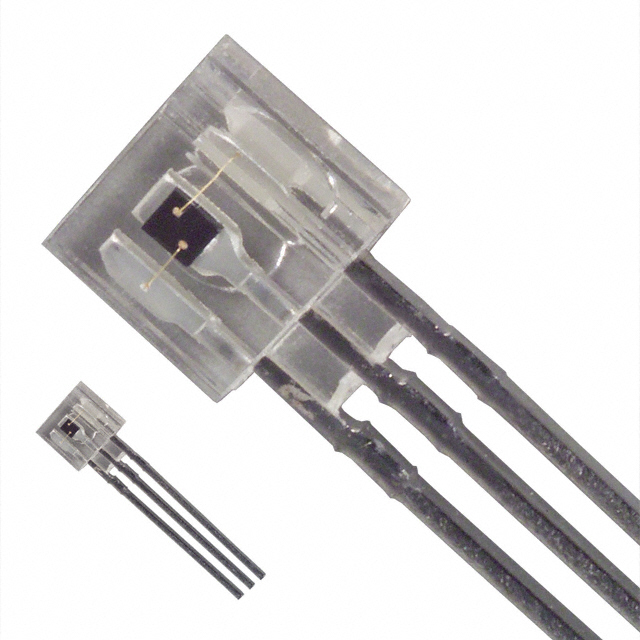

PNA1605F
SENSOR PHOTO 900NM SIDE VIEW RADManufacturer: Panasonic Electronic Components
Categories: Phototransistors
Quality Control: Learn More
Panasonic Electronic Components PNA1605F is a phototransistor designed for infrared detection applications. This component features a side-view radial package, facilitating integration into various optical sensing systems. The PNA1605F exhibits a peak spectral sensitivity at 900nm, making it suitable for applications requiring detection of specific infrared sources. Key electrical characteristics include a maximum collector current (Ic) of 20 mA and a low dark current (Id) of 2 µA, ensuring efficient operation. The component has a maximum collector emitter breakdown voltage of 20 V and a maximum power dissipation of 100 mW. Its wide viewing angle of 140° enhances its ability to capture incident light from a broad area. This phototransistor is commonly utilized in industrial automation, consumer electronics, and automotive systems where optical sensing is a critical function.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | - |
| Package / Case | Radial |
| Wavelength | 900nm |
| Mounting Type | Through Hole |
| Orientation | Side View |
| Operating Temperature | - |
| Viewing Angle | 140° |
| Current - Dark (Id) (Max) | 2 µA |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 20 V |
| Power - Max | 100 mW |
Request a Quote
Clients Also Buy
PNZ12700S
SENSOR PHOTO 800NM TOP VIEW AXL

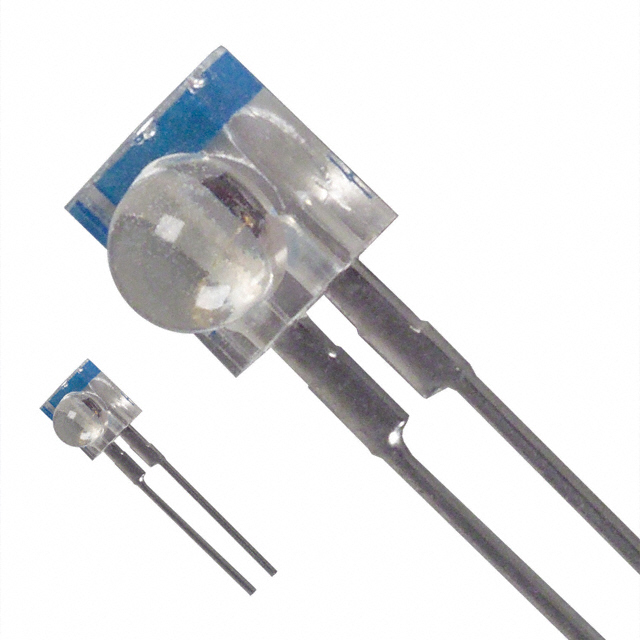

PNA2602M
