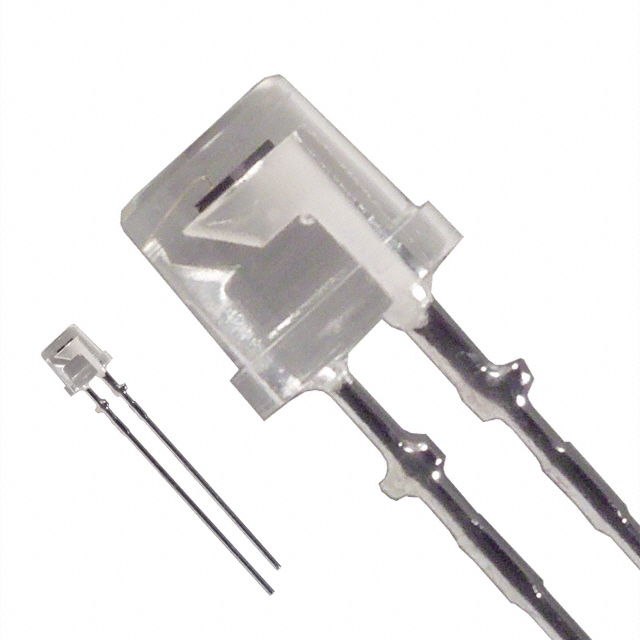

PNZ334
SENSOR PHOTODIODE 850NM RADIALManufacturer: Panasonic Electronic Components
Categories: Photodiodes
Quality Control: Learn More
Panasonic Electronic Components PNZ334 is a high-speed silicon PIN photodiode designed for infrared detection. This component features a 2ns response time, enabling rapid signal processing in demanding applications. Its 850nm peak sensitivity and 140° viewing angle make it suitable for optical communication systems, proximity sensing, and industrial automation. The PNZ334 is housed in a standard radial package with a 5mm diameter (T 1 3/4) and supports through-hole mounting for robust integration into printed circuit boards. It operates within a temperature range of -25°C to 85°C and has a maximum reverse voltage rating of 30V. The typical dark current is 100pA.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, 5mm Dia (T 1 3/4) |
| Wavelength | 850nm |
| Mounting Type | Through Hole |
| Diode Type | Pin |
| Operating Temperature | -25°C ~ 85°C |
| Response Time | 2ns |
| Viewing Angle | 140° |
| Spectral Range | - |
| Color - Enhanced | - |
| Responsivity @ nm | - |
| Active Area | - |
| Current - Dark (Typ) | 100pA |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
Request a Quote
Clients Also Buy

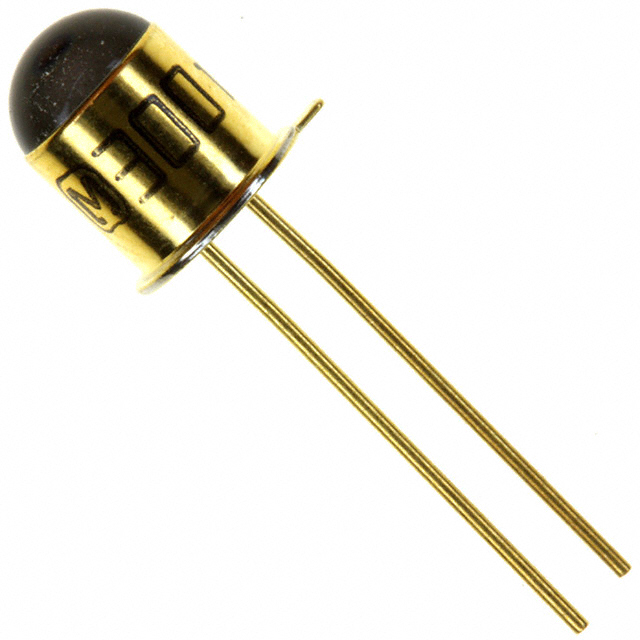

PNZ300F
SENSOR PHOTODIODE 800NM TO18-2

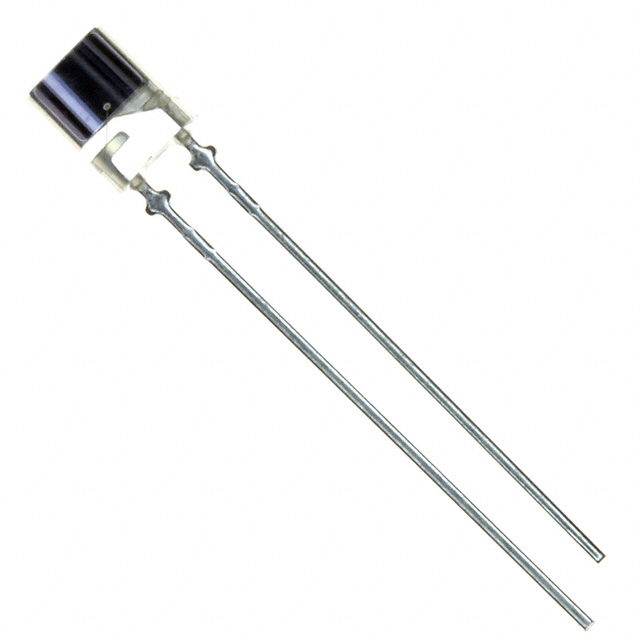

PNZ327
