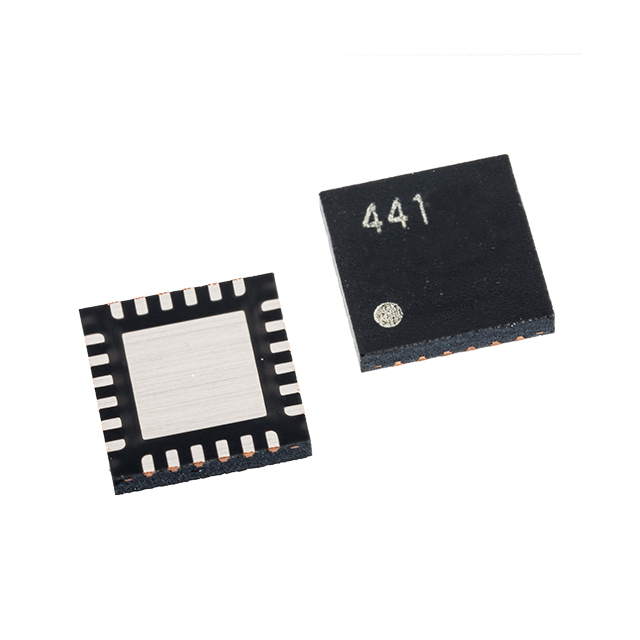

AN44150A-VB
IC MOTOR DRIVER 6V-36V 24HQFNManufacturer: Panasonic Electronic Components
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Panasonic Electronic Components' AN44150A-VB is a fully integrated motor driver featuring a Power MOSFET technology. This device integrates control and power stages for Brushless DC (BLDC) motors. It operates with a supply voltage range of 6V to 36V and supports a load voltage of 6V to 36V. The AN44150A-VB delivers an output current of 1.5A and is configured with three Half Bridge outputs. Control is managed via a Pulse Width Modulation (PWM) interface. The component is housed in a 24-HQFN (4x4) package with an exposed pad, suitable for surface mount applications. Operating temperature ranges from -40°C to 80°C. This component finds application in general-purpose designs across various industries requiring efficient BLDC motor control.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 1.5A |
| Interface | PWM |
| Operating Temperature | -40°C ~ 80°C (TA) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 6V ~ 36V |
| Applications | General Purpose |
| Technology | Power MOSFET |
| Voltage - Load | 6V ~ 36V |
| Supplier Device Package | 24-HQFN (4x4) |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
