MN101CF77GXN
IC MCU 8BIT 128KB FLASH 64LQFPManufacturer: Panasonic Electronic Components
Categories: Microcontrollers
Quality Control: Learn More
Panasonic Electronic Components MN101CF77GXN is an 8-Bit AM1 Series microcontroller featuring a 20MHz MN101C core. This device offers 128KB of FLASH program memory and 6K x 8 of RAM. It includes an internal oscillator, 7x10-bit Analog-to-Digital converters, and 2x8-bit Digital-to-Analog converters. Connectivity options include I2C and UART/USART. Peripherals such as DMA, PWM, and WDT are integrated. This microcontroller is suitable for surface mount applications and operates within a temperature range of -40°C to 85°C. The device is supplied in a 64-LQFP package. Applications span industrial automation, consumer electronics, and automotive systems.
Additional Information
Series: AM1RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-LQFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 128KB (128K x 8) |
| RAM Size | 6K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | MN101C |
| Data Converters | A/D 7x10b; D/A 2x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | I2C, UART/USART |
| Peripherals | DMA, PWM, WDT |
| Number of I/O | 53 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

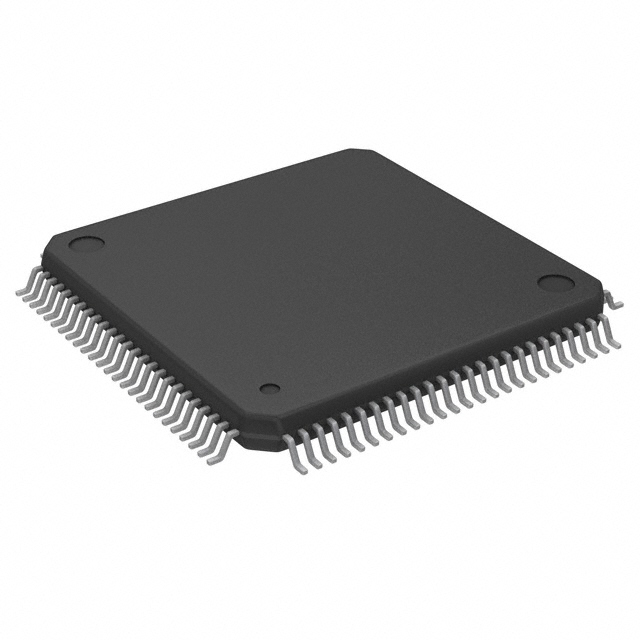

MN101CF49KXN
IC MCU 8BIT 224KB FLASH 100QFP

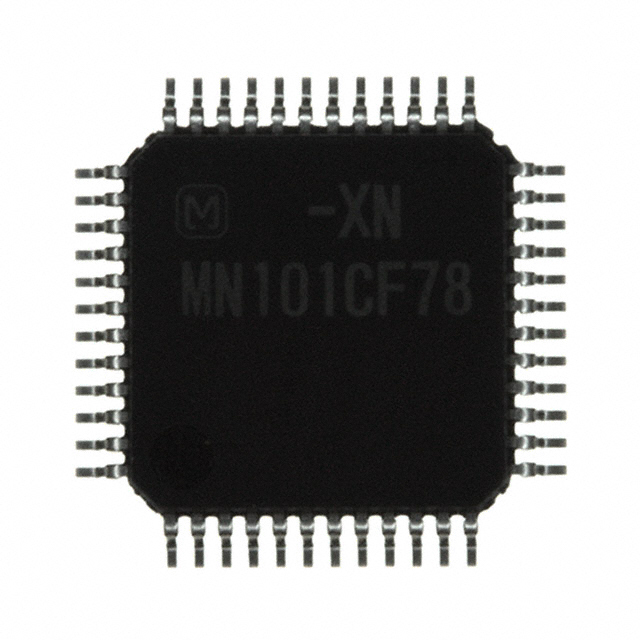

MN101CF78AXN
IC MCU 8BIT 32KB FLASH 48TQFP

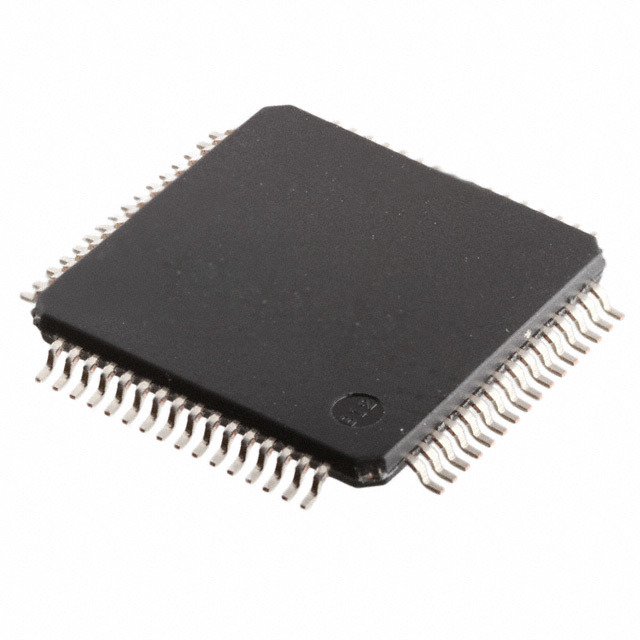

MN101LR05DXW
