AN30183A-PR

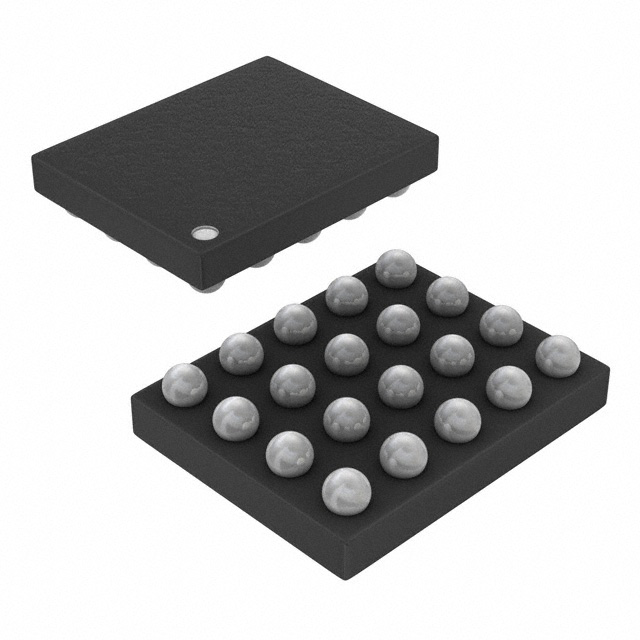

IC REG 5OUT BCK/LNR SYNC 20WLCSPManufacturer: Panasonic Electronic Components
Categories: Linear + Switching
Quality Control: Learn More
Panasonic Electronic Components AN30183A-PR is a power management IC featuring a hybrid regulator architecture. This device integrates one synchronous step-down (buck) regulator with four linear (LDO) regulators, offering a total of five outputs. The synchronous buck regulator operates at a 3MHz switching frequency, enabling efficient voltage conversion. The LDO regulators provide stable voltage output for sensitive circuitry. Designed for surface mount applications, it is supplied in a compact 20-WLCSP (1.56x2.06) package, ideal for space-constrained designs. The input voltage range is 1.7V to 5.5V. Typical applications include mobile devices, portable electronics, and consumer electronics where efficient power delivery and multiple voltage rails are required. The AN30183A-PR is delivered on tape and reel.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-VFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -30°C ~ 85°C |
| Voltage - Supply | 1.7V ~ 5.5V |
| Frequency - Switching | 3MHz |
| Topology | Step-Down (Buck) Synchronous (1), Linear (LDO) (4) |
| Supplier Device Package | 20-WLCSP (1.56x2.06) |
| Voltage/Current - Output 1 | 0.8V ~ 2.4V, 600mA |
| Voltage/Current - Output 2 | 1V ~ 3.3V, 300mA |
| Voltage/Current - Output 3 | 1V ~ 3.3V, 300mA |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | No |
| Number of Outputs | 5 |
