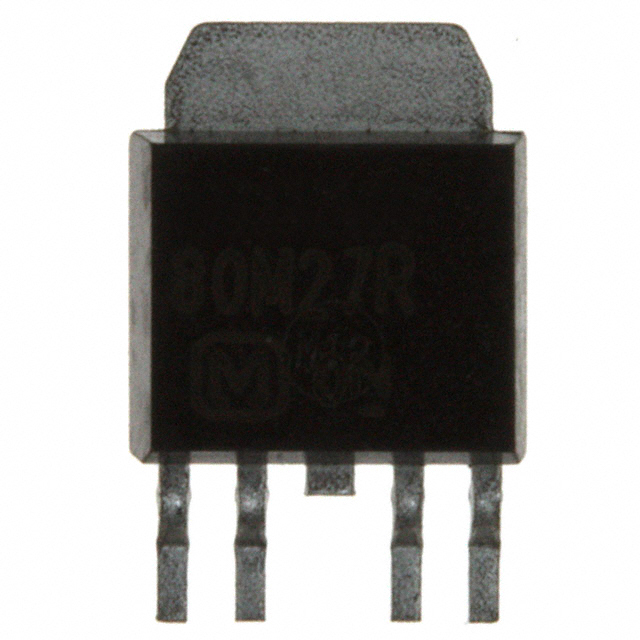

AN80M27RSP
IC REG LINEAR 2.7V 500MA SP-5SUAManufacturer: Panasonic Electronic Components
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Panasonic Electronic Components AN80M27RSP is a positive fixed output voltage linear regulator IC. It delivers a stable 2.7V output with a maximum current capability of 500mA. This device features over current, over temperature, and short circuit protection for robust operation. The AN80M27RSP is suitable for applications requiring an enable control feature and offers a quiescent current of 3mA. With a maximum input voltage of 14V and a typical PSRR of 58.8dB at 120Hz, it is designed for surface mount applications in consumer electronics and industrial equipment. The component is supplied in a SP-5SUA package.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-252-5, DPAK (4 Leads + Tab), TO-252AD |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 500mA |
| Operating Temperature | -30°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 3 mA |
| Voltage - Input (Max) | 14V |
| Number of Regulators | 1 |
| Supplier Device Package | SP-5SUA |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 2.7V |
| Control Features | Enable |
| PSRR | 58.8dB (120Hz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
