AN7712SP

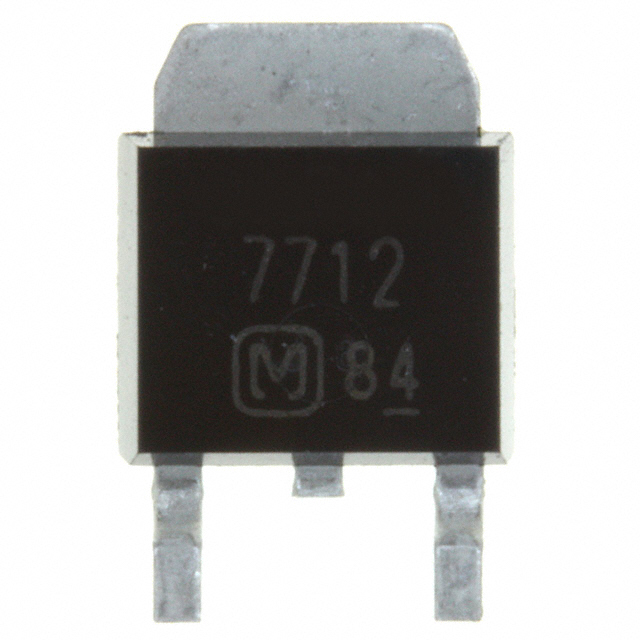

IC REG LINEAR 12V 1.2A SP3SUAManufacturer: Panasonic Electronic Components
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Panasonic Electronic Components AN7712SP is a positive fixed output linear voltage regulator with an output current capability of 1.2A. This TO-252-3 (DPAK) packaged device offers a stable 12V output voltage, requiring an input voltage up to 23V. It features over current, over temperature, and short circuit protection for enhanced reliability. The quiescent current is rated at 5 mA, and the device exhibits a Power Supply Rejection Ratio (PSRR) of 62dB at 120Hz. This component is suitable for applications in consumer electronics, industrial automation, and automotive systems where robust and stable voltage regulation is critical.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1.2A |
| Operating Temperature | 25°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 5 mA |
| Voltage - Input (Max) | 23V |
| Number of Regulators | 1 |
| Supplier Device Package | SP-3SUA |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 12V |
| Control Features | - |
| PSRR | 62dB (120Hz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
