AN7709SP
IC REG LINEAR 9V 1.2A SP3SUAManufacturer: Panasonic Electronic Components
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

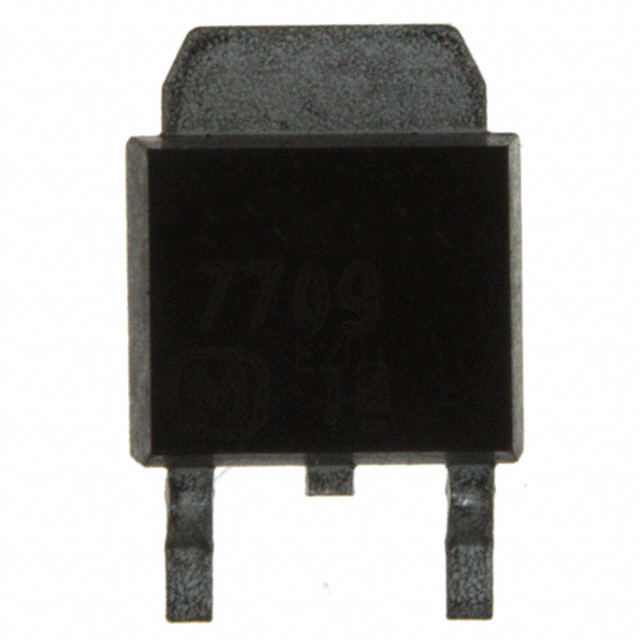

Panasonic Electronic Components AN7709SP is a positive fixed output linear voltage regulator. This device delivers a stable 9V output with a maximum current capability of 1.2A. Featuring over-current, over-temperature, and short-circuit protection, the AN7709SP is designed for reliable operation in demanding applications. Its low quiescent current of 5 mA and a typical PSRR of 65dB at 120Hz make it suitable for power-sensitive designs. The TO-252-3 (DPAK) package facilitates efficient surface-mount assembly. This component is commonly utilized in automotive, industrial, and consumer electronics power management systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1.2A |
| Operating Temperature | 25°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 5 mA |
| Voltage - Input (Max) | 20V |
| Number of Regulators | 1 |
| Supplier Device Package | SP-3SUA |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 9V |
| Control Features | - |
| PSRR | 65dB (120Hz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
