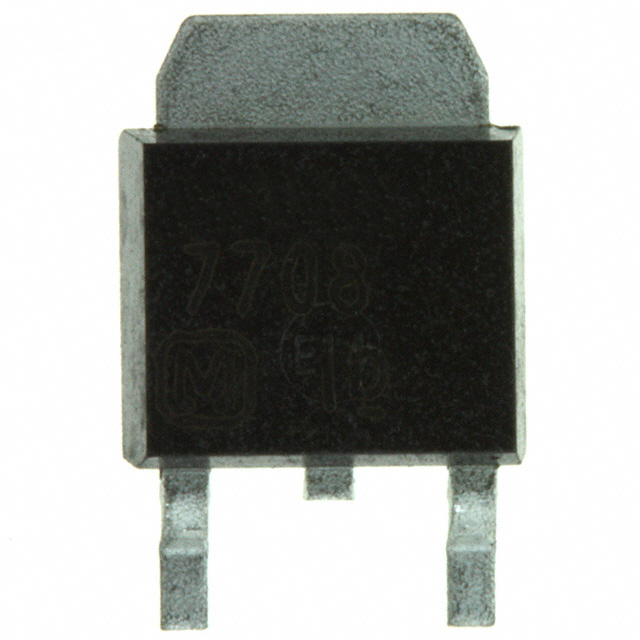

AN7708SP
IC REG LINEAR 8V 1.2A SP3SUAManufacturer: Panasonic Electronic Components
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Panasonic Electronic Components AN7708SP is a positive fixed output linear voltage regulator. This device provides a stable 8V output with a maximum current capability of 1.2A. Designed for surface mount applications, it is housed in a TO-252-3, DPAK (2 Leads + Tab), SC-63 package. The AN7708SP offers robust protection features including over current, over temperature, and short circuit protection. With a typical quiescent current of 5 mA and an input voltage range up to 19V, it is suitable for various power management applications in industries such as automotive, industrial, and consumer electronics. The regulator boasts a power supply rejection ratio (PSRR) of 66dB at 120Hz, ensuring effective noise suppression.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1.2A |
| Operating Temperature | 25°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 5 mA |
| Voltage - Input (Max) | 19V |
| Number of Regulators | 1 |
| Supplier Device Package | SP-3SUA |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 8V |
| Control Features | - |
| PSRR | 66dB (120Hz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
