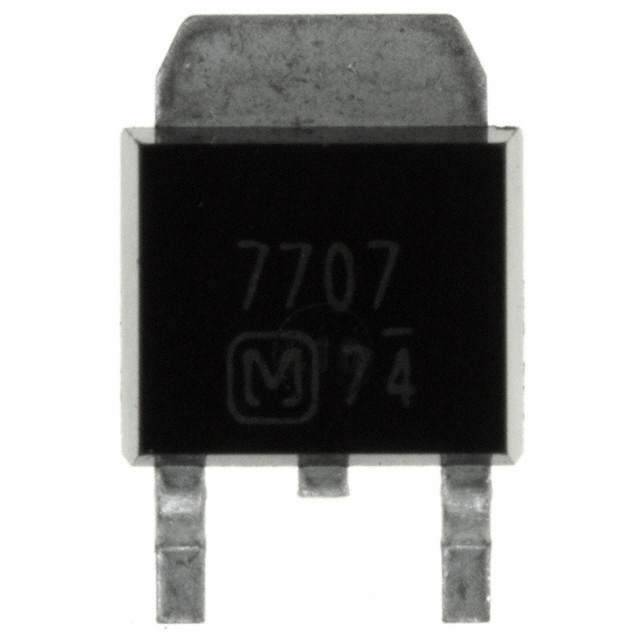

AN7707SP
IC REG LINEAR 7V 1.2A SP3SUAManufacturer: Panasonic Electronic Components
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Panasonic Electronic Components AN7707SP is a positive fixed output linear voltage regulator with an output current capability of 1.2A. This SP-3SUA packaged device features a fixed output voltage of 7V and an input voltage range up to 18V. It incorporates overcurrent, over-temperature, and short-circuit protection for robust operation. The quiescent current is 5mA, and it exhibits a Power Supply Rejection Ratio (PSRR) of 67dB at 120Hz. Designed for surface mount installation, this TO-252-3, DPAK (2 Leads + Tab), SC-63 package is suitable for applications in industrial and consumer electronics requiring dependable voltage regulation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1.2A |
| Operating Temperature | 25°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 5 mA |
| Voltage - Input (Max) | 18V |
| Number of Regulators | 1 |
| Supplier Device Package | SP-3SUA |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 7V |
| Control Features | - |
| PSRR | 67dB (120Hz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
