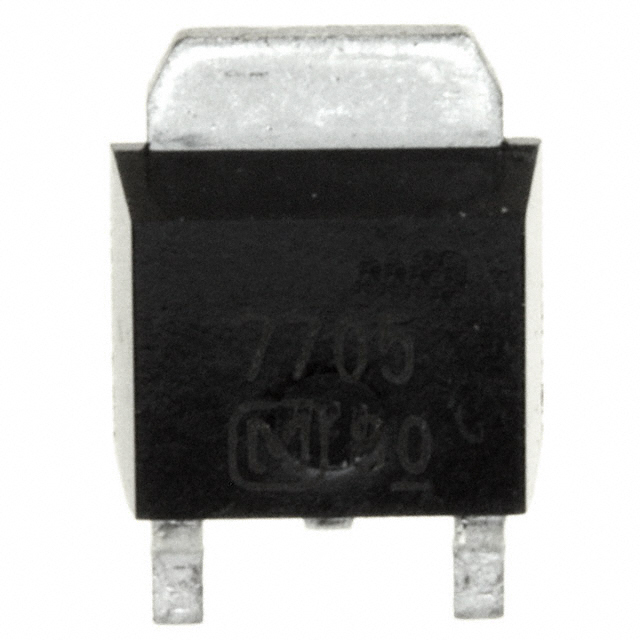

AN7705SP
IC REG LINEAR 5V 1.2A SP3SUAManufacturer: Panasonic Electronic Components
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Panasonic Electronic Components AN7705SP is a positive fixed output linear voltage regulator IC. This device delivers a stable 5V output with a maximum output current of 1.2A. Designed for efficiency, it features a quiescent current of 5 mA. The AN7705SP offers robust protection mechanisms including over current, over temperature, and short circuit protection. Its high power supply rejection ratio (PSRR) of 70dB at 120Hz ensures minimal noise coupling. The TO-252-3, DPAK (2 Leads + Tab), SC-63 package is suitable for surface mount applications, with an input voltage range up to 16V. This component is commonly deployed in automotive, industrial, and consumer electronics applications requiring reliable voltage regulation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1.2A |
| Operating Temperature | 25°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 5 mA |
| Voltage - Input (Max) | 16V |
| Number of Regulators | 1 |
| Supplier Device Package | SP-3SUA |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | - |
| PSRR | 70dB (120Hz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
