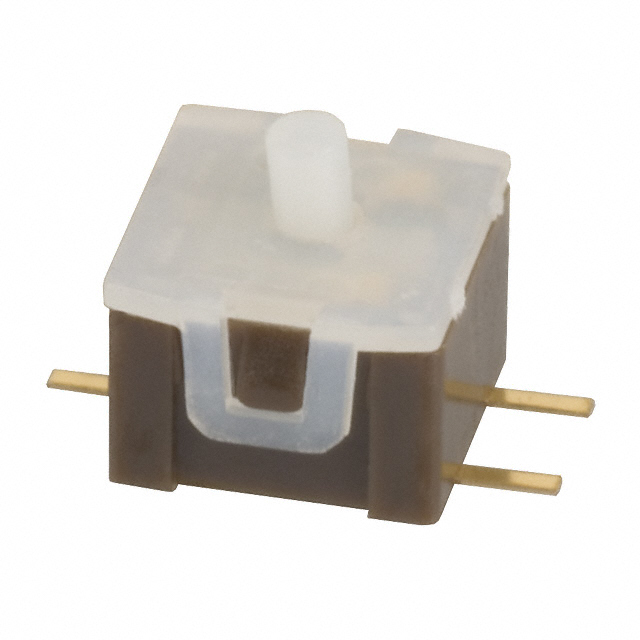

ESE-2161AT
SWITCH DETECTOR SPST-NC 0.01A 5VManufacturer: Panasonic Electronic Components
Categories: Limit Switches
Quality Control: Learn More
Panasonic Electronic Components ESE-2161AT is a surface-mount, normally closed (SPST-NC) detector switch from the ESE21 series. This component features a 5V DC voltage rating and a 10mA DC current rating. The actuator type is an overtravel plunger with an operating position of 0.138 inches (3.5mm) and an operating force of 30gf. Termination is via SMD (SMT) tab. This component is suitable for applications in consumer electronics and industrial automation. It is supplied on tape and reel.
Additional Information
Series: ESE21RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Current Rating (Amps) | 10mA (DC) |
| Mounting Type | Surface Mount |
| Circuit | SPST-NC |
| Switch Function | On-Mom |
| Operating Temperature | -10°C ~ 60°C |
| Termination Style | SMD (SMT) Tab |
| Actuator Type | Overtravel Plunger |
| Operating Force | 30gf |
| Ingress Protection | - |
| Release Force | - |
| Pretravel | - |
| Differential Travel | - |
| Overtravel | - |
| Operating Position | 0.138"" (3.5mm) |
| Voltage Rating - DC | 5 V |
Request a Quote
Clients Also Buy

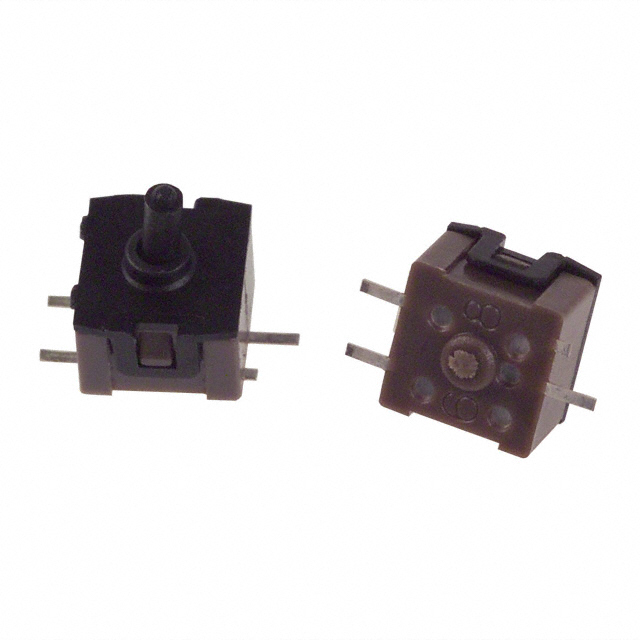

ESE-2121AT
