LNJC36X8ARA1
LED ICE BLUE CHIP SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

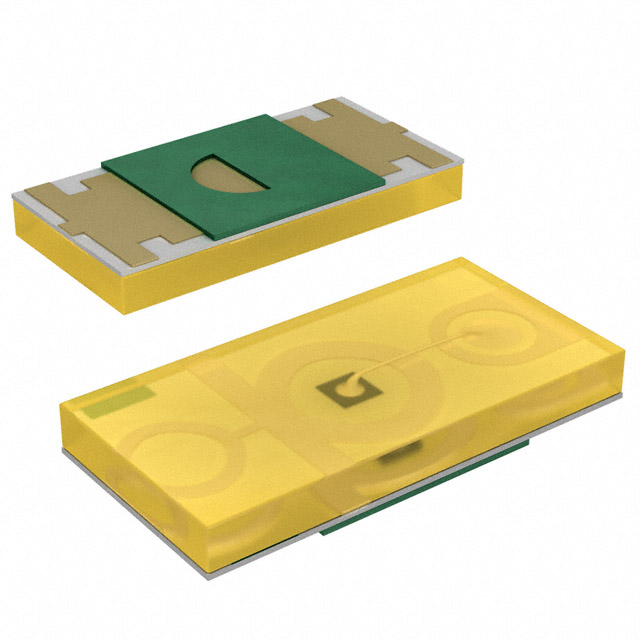

Panasonic Electronic Components LNJC36X8ARA1 is an Ice Blue discrete LED for surface mount applications. This 0603 (1608 Metric) package component features a standard configuration with a forward voltage of 2.9V (typical) and a test current of 5mA, providing 30mcd luminous intensity. Its compact dimensions of 1.60mm L x 0.80mm W and a maximum height of 0.25mm make it suitable for dense board designs. The rectangular lens with a flat top enhances directional illumination. This component is commonly utilized in automotive lighting, industrial control panels, and consumer electronics for status indication. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | Ice Blue |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 30mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.9V |
| Lens Color | - |
| Current - Test | 5mA |
| Viewing Angle | - |
| Height (Max) | 0.25mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | Chip LED |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.60mm x 0.80mm |
