LNJ953W8CRA
LED BLUE SV 0.5 TYPE SMD R/AManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

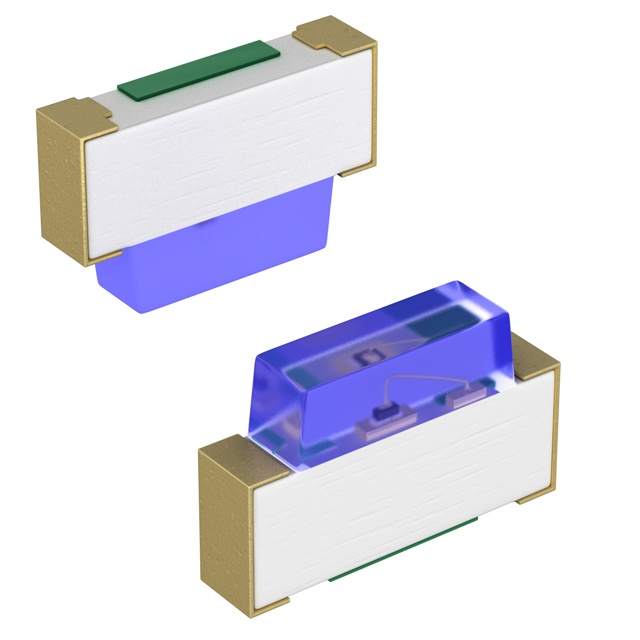

Panasonic Electronic Components Blue LED, part number LNJ953W8CRA, is a discrete light-emitting diode designed for surface-mount, right-angle applications. This 2-SMD, No Lead component emits blue light with a dominant wavelength of 470nm and a peak wavelength of 465nm. It operates at a typical forward voltage of 2.9V and has a current rating of 5mA for testing, yielding a millicandela rating of 10mcd. The LED features a rectangular lens with a flat top, measuring 1.20mm x 0.50mm, within overall dimensions of 1.80mm L x 1.10mm W. Supplied in Tape & Reel (TR) packaging, this SV (Side View) -0.5 Type component is suitable for general indication in automotive and consumer electronics.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | Blue |
| Size / Dimension | 1.80mm L x 1.10mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 10mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.9V |
| Lens Color | - |
| Current - Test | 5mA |
| Viewing Angle | - |
| Height (Max) | 0.60mm |
| Wavelength - Peak | 465nm |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | SV (Side View) -0.5 Type |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.20mm x 0.50mm |
