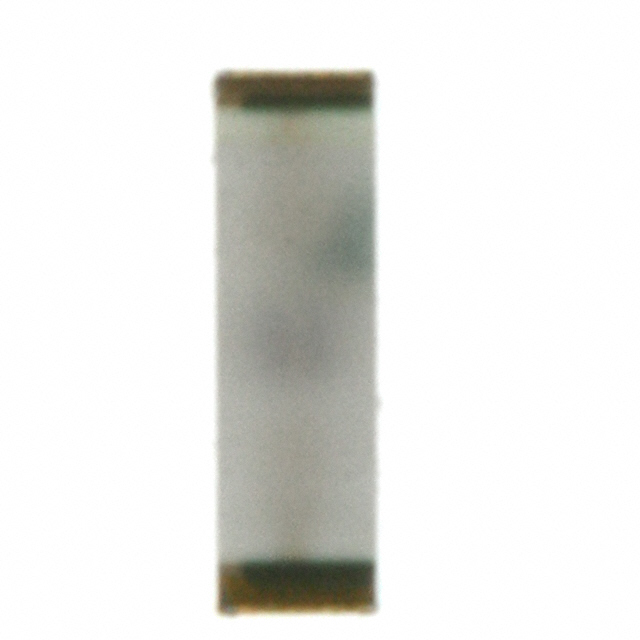

LNJ923W8BRA
LED BLUE SMD R/AManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More
Panasonic Electronic Components LNJ923W8BRA is a blue SMD LED designed for indication applications. This discrete component features a 472nm dominant wavelength and a 467nm peak wavelength, emitting a bright blue light with a typical millicandela rating of 25mcd. Operating at a forward voltage of 3V, it is optimized for efficient performance with a test current of 5mA. The LNJ923W8BRA utilizes a 2-SMD, No Lead package for surface mounting, specifically configured for right-angle orientation. Its compact dimensions of 2.50mm L x 1.10mm W and a maximum height of 0.85mm, coupled with a rectangular lens featuring a domed top, make it suitable for space-constrained designs in automotive and industrial electronics. The component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | Blue |
| Size / Dimension | 2.50mm L x 1.10mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 25mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3V |
| Lens Color | - |
| Current - Test | 5mA |
| Viewing Angle | - |
| Height (Max) | 0.85mm |
| Wavelength - Peak | 467nm |
| Wavelength - Dominant | 472nm |
| Supplier Device Package | - |
| Lens Transparency | - |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.14mm x 0.70mm |
