LNJ911W8BRA
LED BLUE SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

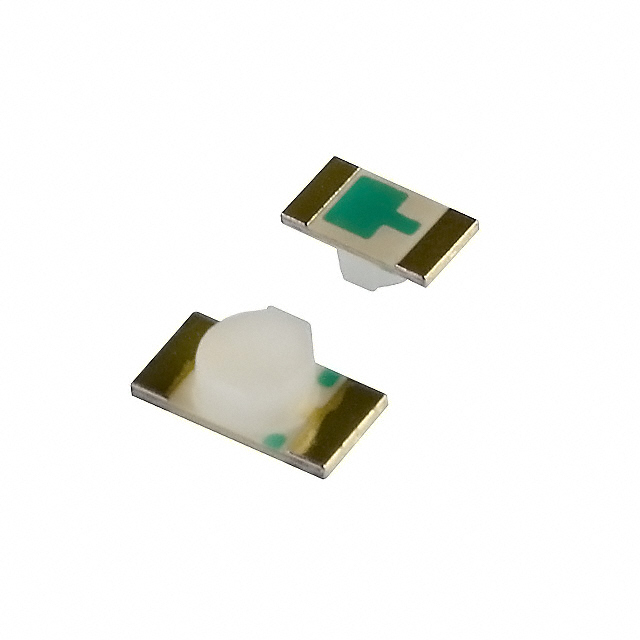

Panasonic Electronic Components LNJ911W8BRA is a discrete blue surface-mount LED designed for indication purposes. This component, housed in a 1206 (3216 Metric) package, features a standard configuration with a typical forward voltage of 3.2V. Tested at 5mA, it achieves a luminous intensity of 8.5mcd with a peak wavelength of 470nm. The LED has a compact footprint measuring 3.20mm L x 1.60mm W and a maximum height of 1.10mm. Its round lens style with a flat top is suitable for various assembly processes. This component is commonly utilized in consumer electronics, industrial control systems, and automotive applications where reliable LED indication is critical. The LNJ911W8BRA is supplied on a tape and reel for efficient automated placement.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Blue |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 8.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | - |
| Current - Test | 5mA |
| Viewing Angle | - |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 470nm |
| Wavelength - Dominant | - |
| Supplier Device Package | - |
| Lens Transparency | - |
| Lens Style | Round with Flat Top |
| Lens Size | 1.70mm Dia |
