LNJ906W5BUX
LED BLUE DIFFUSED SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

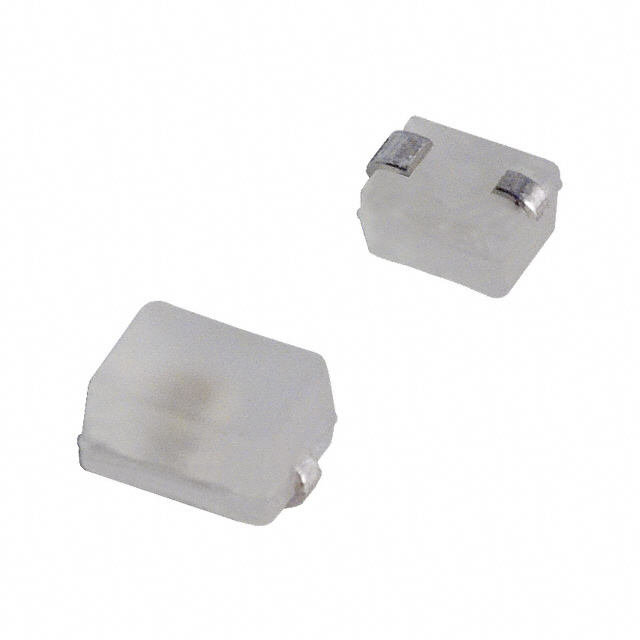

Panasonic Electronic Components LNJ906W5BUX is a discrete blue LED designed for surface mount applications. This component, housed in an 0805 (2012 Metric) package, features a diffused lens for a uniform light output. With a typical forward voltage of 3.2V and a test current of 5mA, it achieves a millicandela rating of 5.5mcd. The LED's dimensions are 1.70mm in length and 1.25mm in width, with a maximum height of 1.10mm. The lens color is white, and the overall configuration is standard. This component is commonly utilized in industrial automation, consumer electronics, and medical devices where reliable visual indication is critical. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Color | Blue |
| Size / Dimension | 1.70mm L x 1.25mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 5.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | White |
| Current - Test | 5mA |
| Viewing Angle | - |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 470nm |
| Wavelength - Dominant | - |
| Supplier Device Package | - |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.70mm x 1.25mm |
