LNJ8L4C28RAA
LED RED CLEAR 4PLCC SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

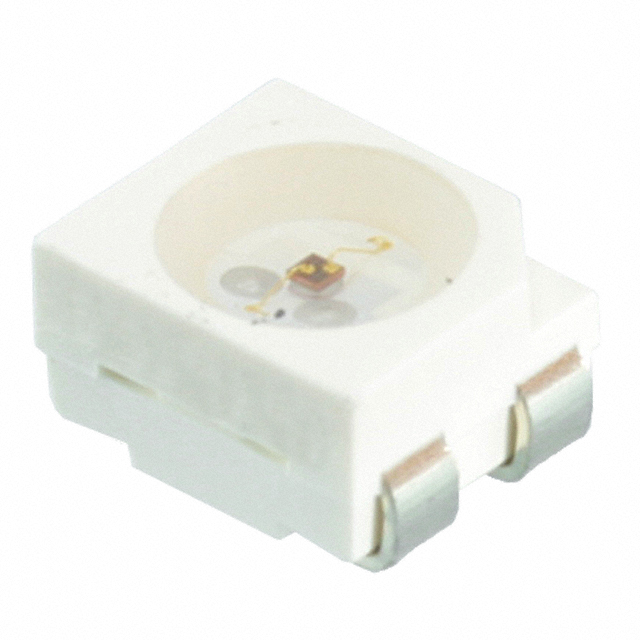

Panasonic Electronic Components LNJ8L4C28RAA is a red, clear indicator LED housed in a 4-PLCC surface-mount package. This discrete LED operates with a typical forward voltage of 2.3V and a test current of 50mA, achieving a millicandela rating of 1810mcd. The dominant wavelength is 617nm, with a peak wavelength of 623nm, ensuring a distinct red color output. The LED features a colorless lens with a round, flat-top style, measuring 2.40mm in diameter. Its dimensions are 3.20mm in length and 2.80mm in width, with a maximum height of 1.95mm. This component is commonly utilized in automotive, industrial, and consumer electronics applications for status indication. It is supplied on tape and reel (TR).
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Red |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 1810mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.3V |
| Lens Color | Colorless |
| Current - Test | 50mA |
| Viewing Angle | - |
| Height (Max) | 1.95mm |
| Wavelength - Peak | 623nm |
| Wavelength - Dominant | 617nm |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
