LNJ852W83RA
LED ORANGE SV 0.4 TYPE SMD R/AManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

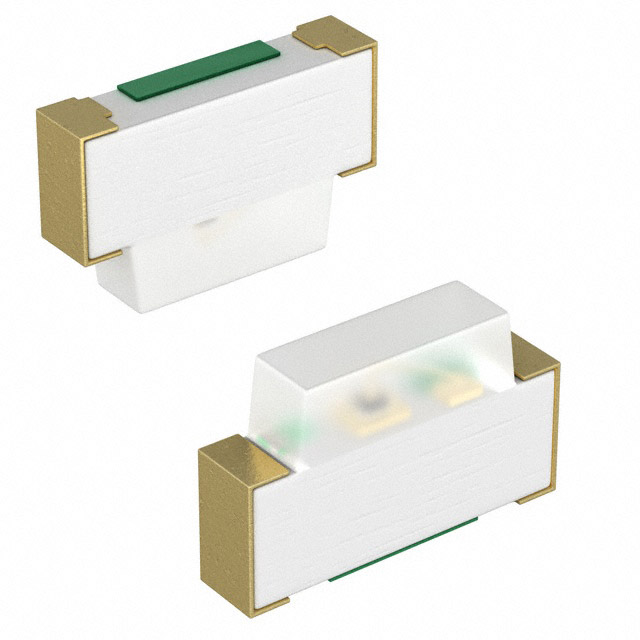

Panasonic Electronic Components LNJ852W83RA is a discrete orange LED designed for surface mount, right-angle applications. This component, with a typical forward voltage of 1.9V and a test current of 5mA, emits light at a dominant wavelength of 620nm and a peak wavelength of 630nm, achieving a millicandela rating of 17mcd. The LED features a 1.20mm x 0.40mm rectangular lens with a flat top, offering a side-view (SV) configuration. Its compact dimensions of 1.80mm L x 1.10mm W and a maximum height of 0.50mm, housed in a 2-SMD, No Lead package, make it suitable for space-constrained designs. This component is commonly utilized in industrial automation, consumer electronics, and medical devices where clear visual indication is required. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | Orange |
| Size / Dimension | 1.80mm L x 1.10mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 17mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Lens Color | - |
| Current - Test | 5mA |
| Viewing Angle | - |
| Height (Max) | 0.50mm |
| Wavelength - Peak | 630nm |
| Wavelength - Dominant | 620nm |
| Supplier Device Package | SV (Side View) -0.4 Type |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.20mm x 0.40mm |
