LNJ826W86RA
LED ORANGE UTSS TYPE SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More

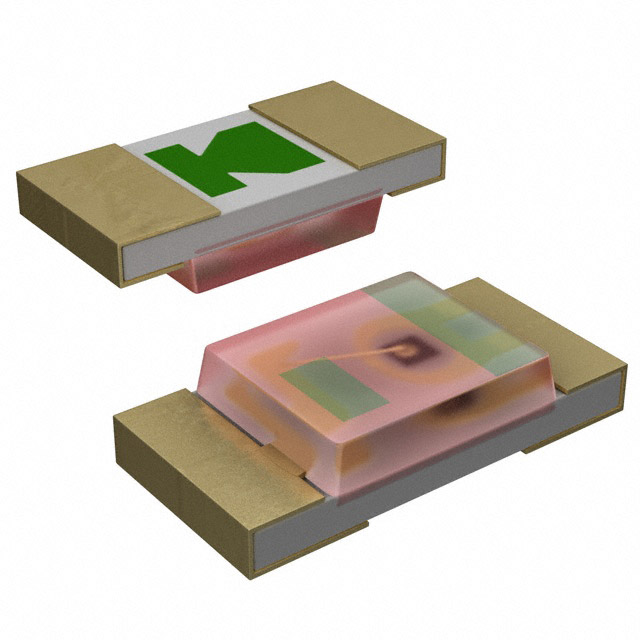

Panasonic Electronic Components LNJ826W86RA is a discrete orange LED designed for surface mount applications, featuring the 0603 (1608 Metric) package. This UTSS Type component emits a dominant wavelength of 605nm with a peak wavelength of 610nm, delivering 16.9mcd luminous intensity at a forward current of 10mA. The forward voltage is typically 1.92V. Its dimensions are 1.60mm in length and 0.80mm in width, with a maximum height of 0.42mm. The lens measures 1.10mm x 0.80mm and has a rectangular shape with a flat top. This component is supplied on tape and reel. It finds application in industrial automation, consumer electronics, and general indication.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | Orange |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 16.9mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.92V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 0.42mm |
| Wavelength - Peak | 610nm |
| Wavelength - Dominant | 605nm |
| Supplier Device Package | UTSS Type |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 0.80mm |
