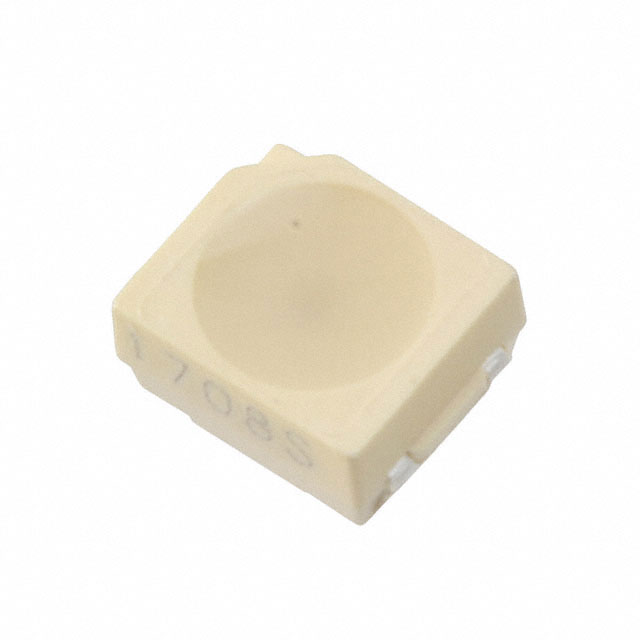

LNJ824C43RA
LED ORANGE 3528 SMDManufacturer: Panasonic Electronic Components
Categories: LED Indication - Discrete
Quality Control: Learn More
Panasonic Electronic Components LNJ824C43RA is a discrete orange LED designed for indication purposes. This 3528 SMD component features a 2-PLCC package, offering a standard configuration with a forward voltage of 2V at a test current of 10mA. The dominant wavelength is 621nm, with a peak wavelength of 630nm, producing a millicandela rating of 80mcd. Its dimensions are 3.20mm L x 2.80mm W, with a maximum height of 2.10mm. The LED utilizes a round with flat top lens style. This component is commonly employed in industrial automation, consumer electronics, and automotive applications where reliable visual feedback is critical. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Color | Orange |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 80mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 2.10mm |
| Wavelength - Peak | 630nm |
| Wavelength - Dominant | 621nm |
| Supplier Device Package | 3528 |
| Lens Transparency | - |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
